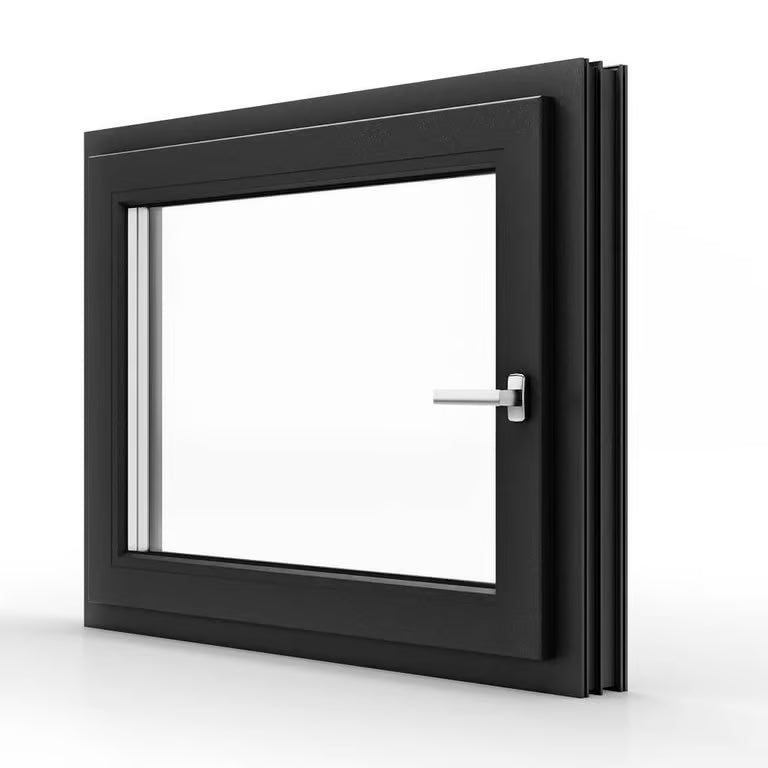

The Aluplast IDEAL neo MD is a premium plastic (uPVC) window system, part of the advanced NEO platform, designed for modern architecture and high energy performance.

It features a simple, symmetrical, cubist design with a flush or semi-flush look that often mimics the slender appearance of aluminum windows, making it ideal for contemporary or Bauhaus-inspired styles.

This window is an excellent choice for homeowners or builders seeking superior thermal insulation and increased security.

Triple-Seal System: The key energy feature is the Center Gasket (MD) system, which uses three continuous sealing levels to create a "dry chamber" for the hardware. This significantly improves thermal and acoustic insulation and protects the hardware from moisture.
High Thermal Performance: The profile achieves excellent thermal performance with a 6-chamber structure. With standard triple glazing, the overall window U-value (Uw) can be as low as 0.83 W per square meter Kelvin (0.15 BTU per hour square foot Fahrenheit).
Enhanced Security: The system offers high burglary protection, primarily due to the security fittings and the third middle gasket which acts as an anti-lever stop. The hardware channel is located within the protected "dry chamber" for increased longevity and security.

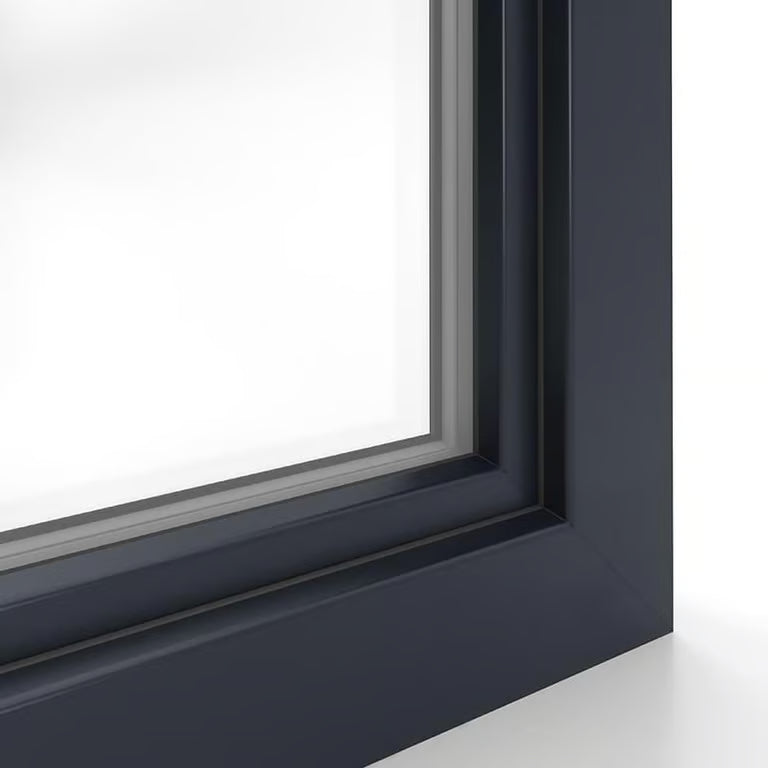

Aesthetics and Lighting: The slim sash and frame combination achieves a narrow visible width, which allows for greater light penetration and optimizes solar heat gain.

Pricing Information (US Estimates)

The Aluplast IDEAL neo MD system is positioned as a modern, high-performance product with a competitive price point in the energy-efficient European market.

Starting Price (European): The listed starting price is from 29 € (approximately 31 USD) before discounts and VAT, with a net starting price for a small, fixed window (1000 mm x 1000 mm) at 107 € (approximately 115 USD).
US Price Per Square Foot (Material Only): For a triple-glazed configuration, the estimated material price per square foot is approximately 24 USD.
Reference Window Price (US): A comparable reference tilt-and-turn window (36 inches x 60 inches / 0.91 m x 1.52 m, 3-pane) is typically sold for a material cost in the range of 528 USD to 608 USD.
Cost Varies Widely: The final cost depends on the size, color/decor finish, and chosen glazing (2-fold vs. 3-fold). Customers should use the online calculator to get a precise quote.

Orders over $800 ship free
30 day returns

Material & Dimensions

Brand: Aluplast

Model/Product Name: IDEAL neo MD

Product Type: uPVC Plastic Window

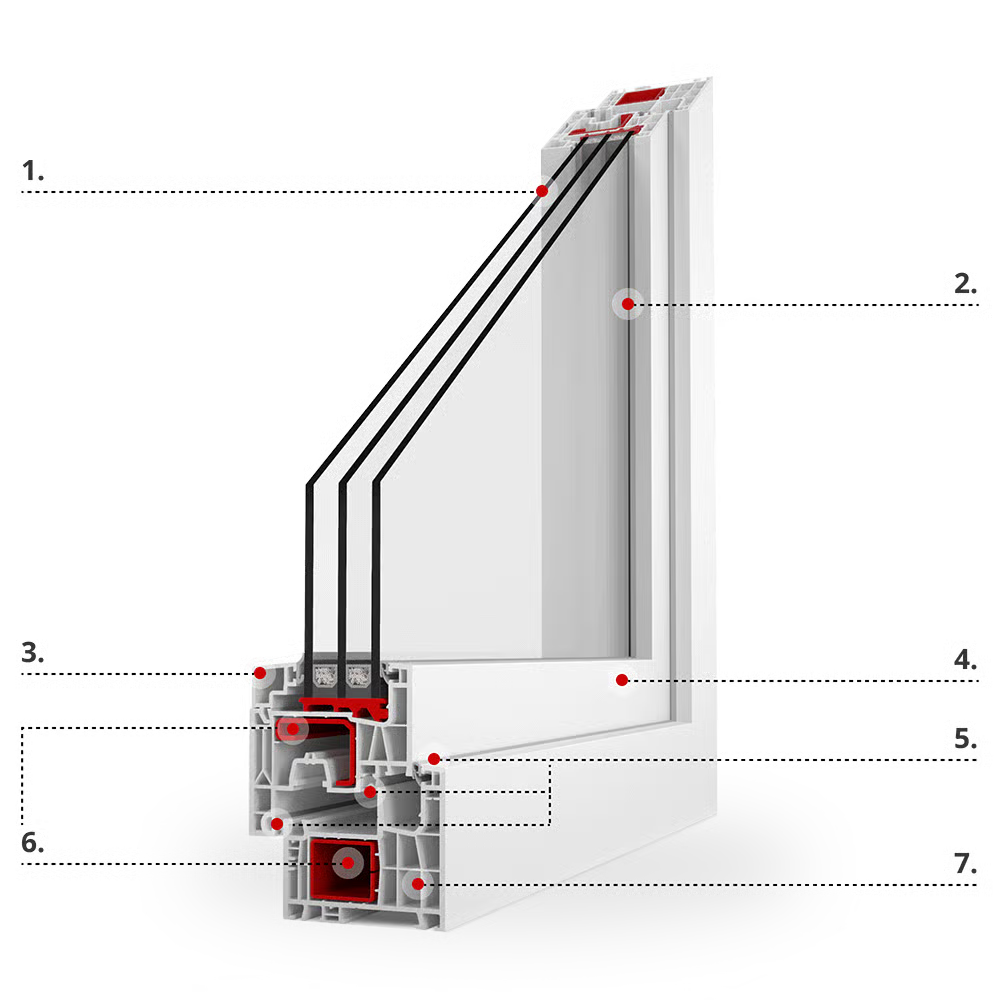

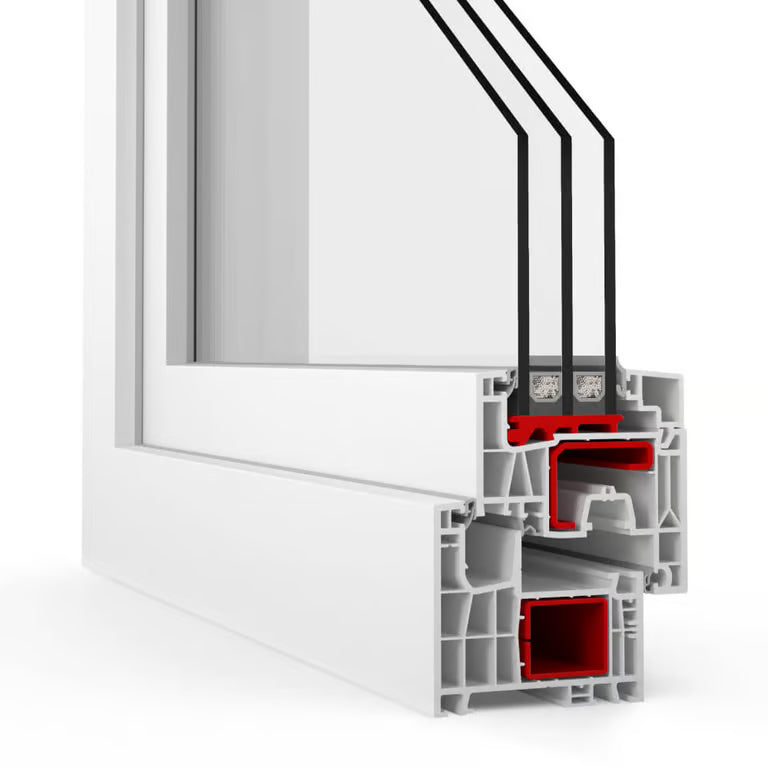

Profile Chambers: 6-chamber profile system

Installation Depth (Bautiefe): 76 mm (2.99 inches)

Profile U-Factor (Uf): 1.2 W per square meter Kelvin (0.21 BTU per hour square foot Fahrenheit)

Overall Window U-Value (Uw): Greater than or equal to 0.83 W per square meter Kelvin (0.15 BTU per hour square foot Fahrenheit) (Standard glazing); as low as 0.76 W per square meter Kelvin (0.13 BTU per hour square foot Fahrenheit) (Specific configuration with 0.5 W per square meter Kelvin Ug and Swisspacer).

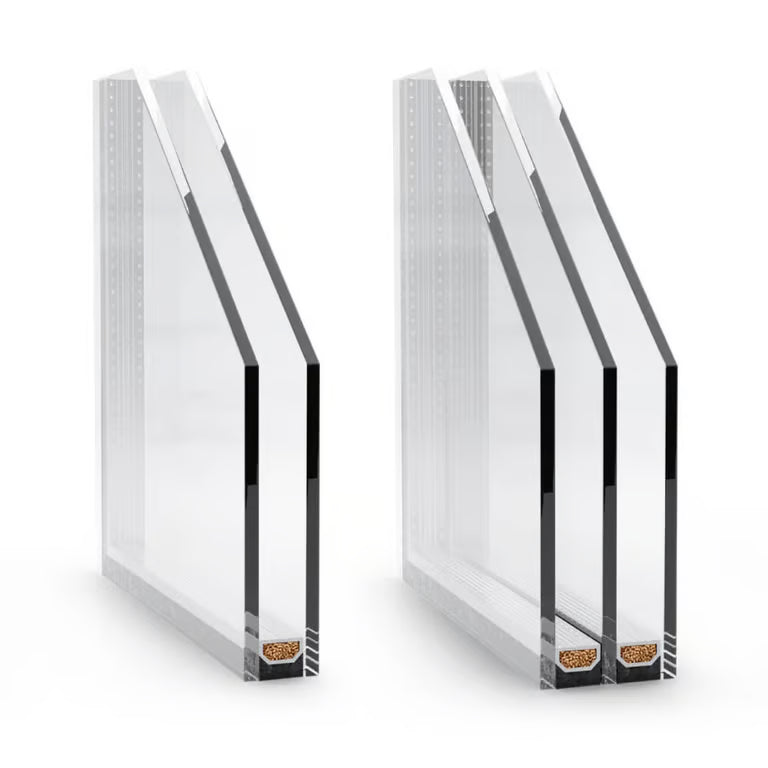

Glazing Options: 2-fold (double) or 3-fold (triple) glazing. Thermal, safety, and sound insulation glazing possible.

Max Glazing Unit Thickness: Up to 54 mm (2.13 inches); up to 64 mm (2.52 inches) also cited.

Sealing System: Center Gasket (MD) system with 3 continuous sealing levels.

Reinforcement: Steel reinforcement (Stahlverstärkung); optional Powerdur composite reinforcement.

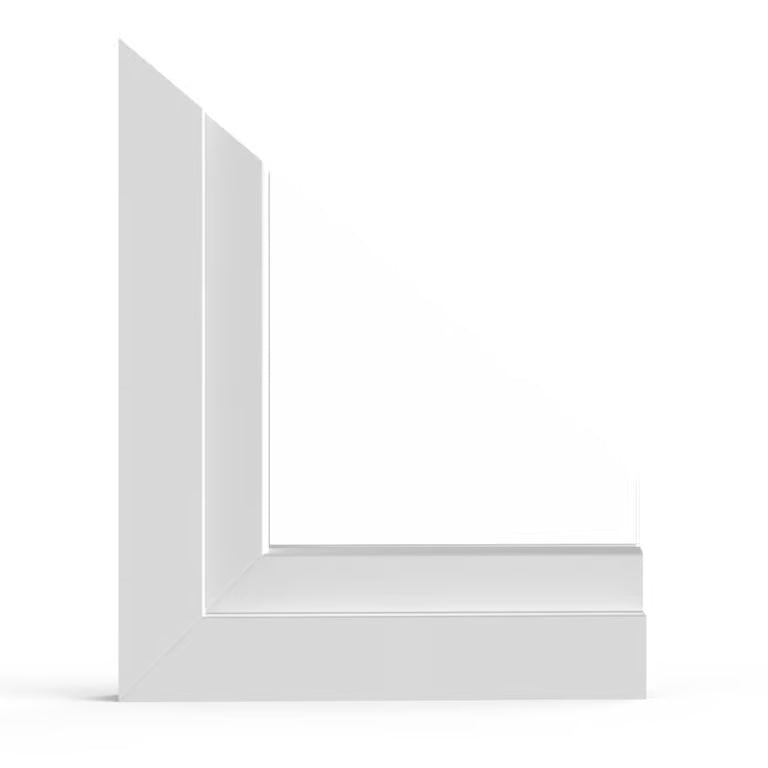

Profile Appearance: Flush/Offset design (flächenversetzter Optik); Simple, symmetrical, cubist shape.

Sash/Frame Visible Height (Folding Height): Only 110 mm (4.33 inches) for more light.

Minimum Dimensions (Breite/Höhe): From 51 cm (20.08 inches) wide; From 51 cm (20.08 inches) high.

Security Features: High burglary protection through security fittings; includes classic central seal for better protection against prying; 5 anti-theft points per leaf cited.

Compatible Technologies: Optional "Bonding inside" (glued-in glass) for enhanced static/thermal parameters; optional "Foam inside" (profile foaming).

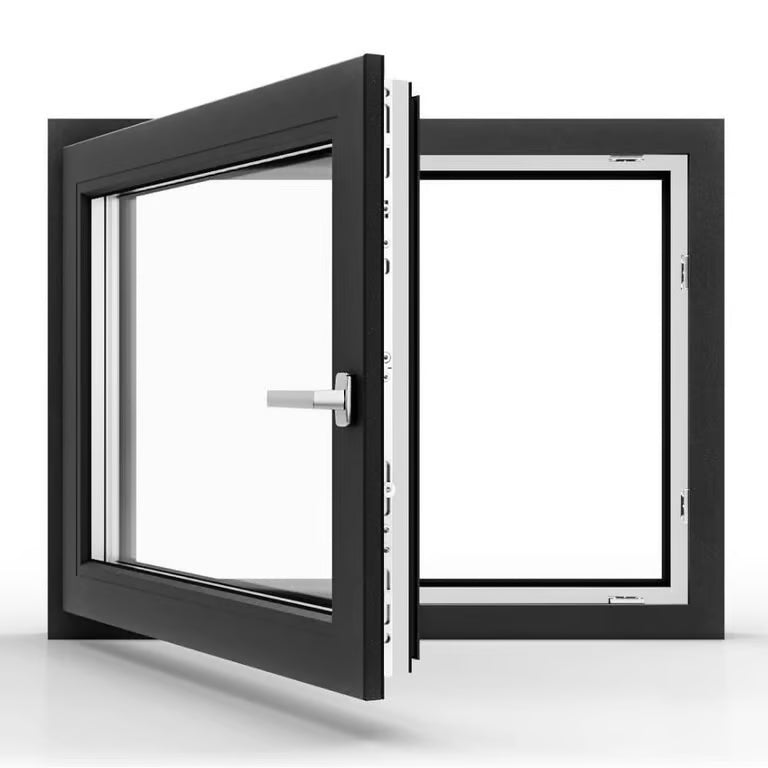

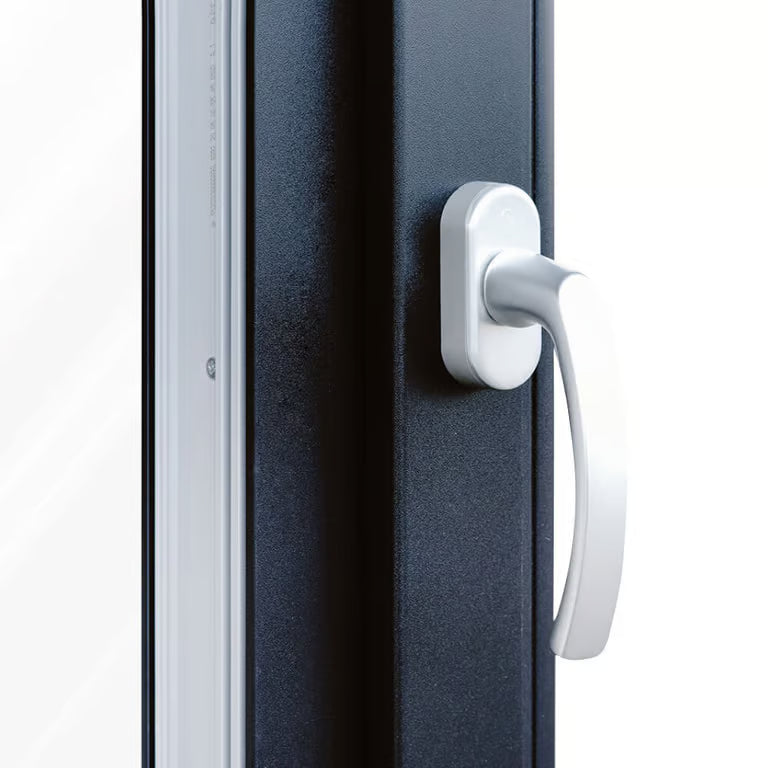

Compatible Accessories: Standard window handle (Griff); Optional turn-tilt fitting (Dreh-Kipp-Beschlag) with misoperation lock (Fehlbedienungssperre); various security and standard handles available (e.g., Mistral, Dublin, Hoppe Secustic); Compatible with various ventilators (e.g., Aereco, Ventair).

Core Colors: White, Brown, Anthracite.

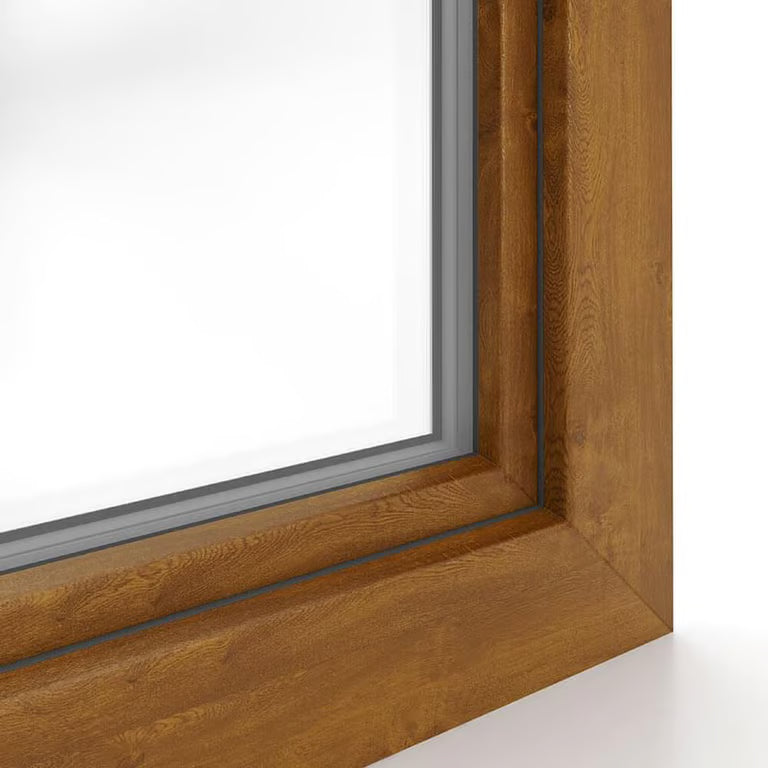

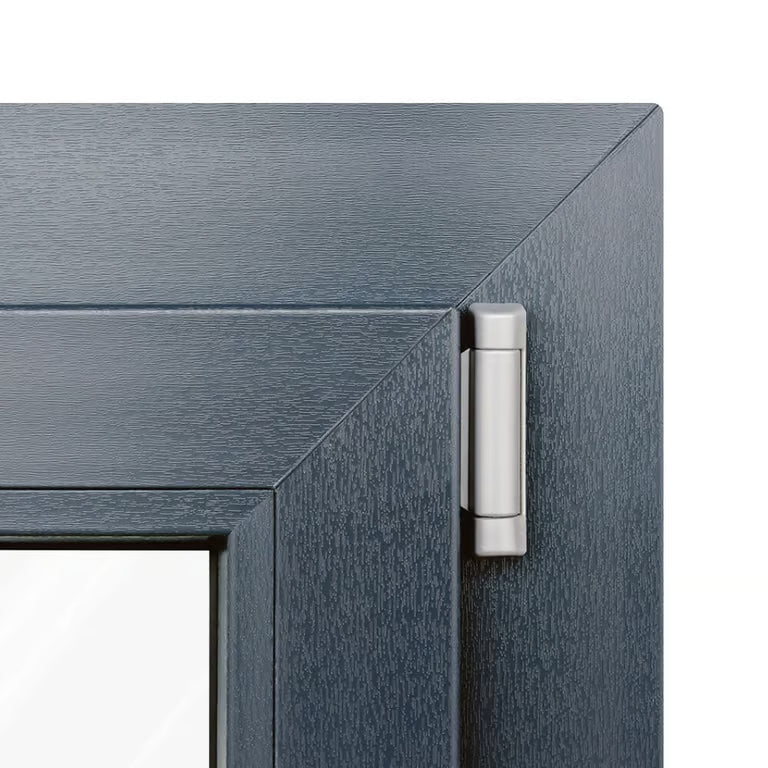

Variants/Finishes: Available in white or multiple decorative foils (Decor). Includes various wood looks (e.g., Golden Oak) and solid colors (e.g., Anthracite, DB703).

Sound Insulation (Rw): Up to 38 dB (depending on filling); minimum 36 dB.

Standards/Ratings: Part of the NEO platform, compatible with AD and MD variants; Class B profile cited.

Construction: Profiles are subdivided into multiple chambers for thermal insulation.

Installation Method: The system's construction allows for free connection of individual profile geometries.

Delivery Time: Expected 2-5 weeks.

Price (Shopify Listing): 528.00 USD (As listed on the current product page).

Inventory (On Hand): 999 units (At location 11601 Wilshire Blvd).
