Aluprof MB 104 PASSIVE Certified Door | U-Factor 0.09 | Extreme Insulation & RC3 Security

Name: Aluprof MB 104 PASSIVE Certified Door | U-Factor 0.09 | Extreme Insulation & RC3 Security
Brand: Aluprof
Availability: InStock

$0.00

550 in stock

The Aluprof MB 104 PASSIVE system is a premium exterior door solution engineered to meet and exceed all requirements for components used in passive buildings.

Its exceptional thermal performance is officially confirmed by certificates granted by the Passive House Institute PHI Darmstadt.

Passive House Standard: Meets the most stringent standards for minimal heat loss and superior energy efficiency.
Superior Durability: Features high structural strength and excellent resistance to wind load, water, and air permeability.
Design Options: Available as elegant glass doors or sophisticated panel doors, making them a perfect choice for a modern, high-end home.
Thermal Variants: The frame components are available in two exceptional versions: I (Insulation) and AERO (enhanced insulation) for tailored performance.

Pricing Information (US Estimates)

As a certified Passive House component, the MB 104 PASSIVE is a high-end product, and its price reflects its superior engineering and energy-saving capability.

Estimated U-Factor Cost: The cost is justified by the extremely low U-factor (down to 0.09), which dramatically reduces long-term heating and cooling expenses.
Recommendation: Due to the complexity and customization involved (glass or panel door, RC3 security requirements), please contact us for a project-specific quote.

Orders over $800 ship free
30 day returns

Material & Dimensions

Performance and Ratings

Overall Door Insulation (Ud/Uw): Can achieve 0.09 BTU per hr sq ft F (0.53 W per meter squared Kelvin) [Aluprof MB 104 PASSIVE - Aluglass].
Air Permeability: Class 4 (Highest rating, EN 12207).
Watertightness: Up to Class E1200 Pa (EN 12208).
Wind Load Resistance: Up to Class C4/B5 (EN 12210).
Burglar Resistance: Up to RC3 class (EN 1627) [Aluprof MB 104 PASSIVE - Aluglass].

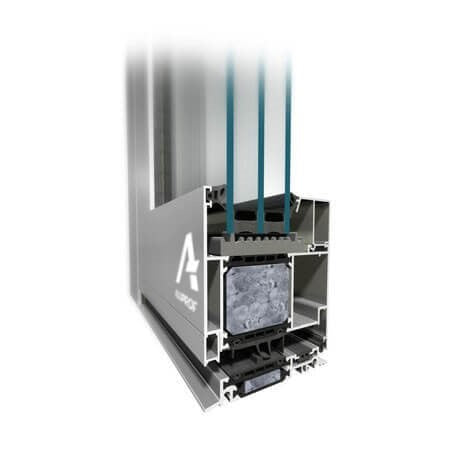

Construction and Capacity

Window Frame Depth: 3.74 inches (95 mm).
Window Casement Depth: 4.09 inches (104 mm).
Door Casement Depth: 3.74 inches (95 mm).
Max Casement Size (Height): Up to 9.84 feet (3000 mm) for doors, and 9.51 feet (2900 mm) for windows.
Max Casement Size (Width): Up to 4.59 feet (1400 mm) for doors, and 5.58 feet (1700 mm) for windows.
Glazing Thickness Range: Supports glass or panels from 1.06 inches up to 2.83 inches (27 mm to 72 mm) for doors, and up to 3.19 inches (81 mm) for window vents.
Hinge Compatibility: "Euro" grooves allow the fitting of most available hardware, including surface, roller, or concealed hinges
