The Aluprof MB-86 is an advanced aluminum window and door system engineered to deliver outstanding thermal insulation properties, meeting the legislative and market demands for enhanced energy savings.

This system is the first aluminum solution to utilize silica aerogel in the AERO variant, a highly innovative material that ensures industry-leading low thermal conductivity.

Exceptional Strength: Features exceptional profile inertia, allowing for the construction of very large windows and doors with heavy glazing weight (up to 150 kg).

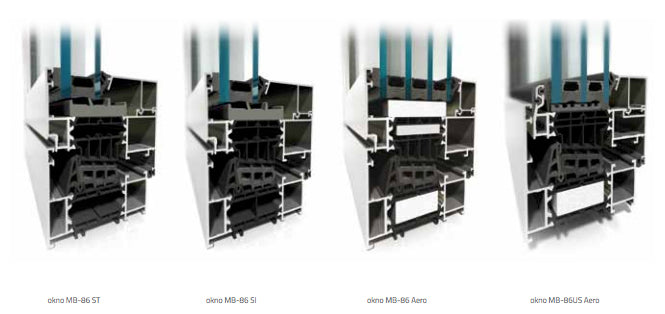

Thermal Innovation: Offered in three variants (ST, SI, and AERO) to precisely match thermal requirements.
Aesthetic Quality: Provides clean, sharp lines of narrow extruded aluminum framing and supports a variety of hardware, including concealed hinges for an elegant look.
Recommended Use: Highly recommended for energy-efficient constructions and passive house projects.

Orders over $800 ship free
30 day returns

Material & Dimensions

Thermal Performance (Uf values)

Standard (ST) Frame Uf: From 1.39 W per meter squared Kelvin.
Super Insulated (SI) Frame Uf: From 0.92 W per meter squared Kelvin.
AERO Frame Uf (Best Performance): From 0.57 W per meter squared Kelvin (thanks to silica aerogel).
Overall Window Uw (AERO fixed window): Can be as low as 0.72 W per meter squared Kelvin.

Overall Performance Ratings

Air Permeability: Class 4 (PN-EN 12207:2001).
Watertightness: Class AE 1800 (EN 12208).
Wind Load Resistance: Class C5 / B5 (EN 12210).
Maximum Weight: 150 kg (per window sash).

Construction and Dimensions

Frame Depth: 77 mm.
Leaf (Sash) Depth (Windows): 86 mm.
Glazing Range (Windows): Supports glass or panels from 27 mm up to 72 mm.
Glazing Range (Doors): Supports glass or panels from 21 mm up to 67.5 mm.
Maximum Window Size (H x L): Up to 2800 mm in height and 1400 mm in length.
Maximum Door Size (H x L): Up to 3000 mm in height and 1700 mm in length.

System Features and Functionality

Thermal Breaks: Features newly shaped, extra thick thermal breaks and a multi-component central gasket.
Aesthetic Options: Supports concealed hinges and offers numerous finish options.
Glazing Options: Accommodates triple chamber glazing, acoustic and security glass, and anti-burglary glazing.
Concealed Sash Option: Also available in a version with a concealed sash (MB-86US) for a uniform glass appearance.
Water Drainage: Available in both traditional and concealed water draining options
