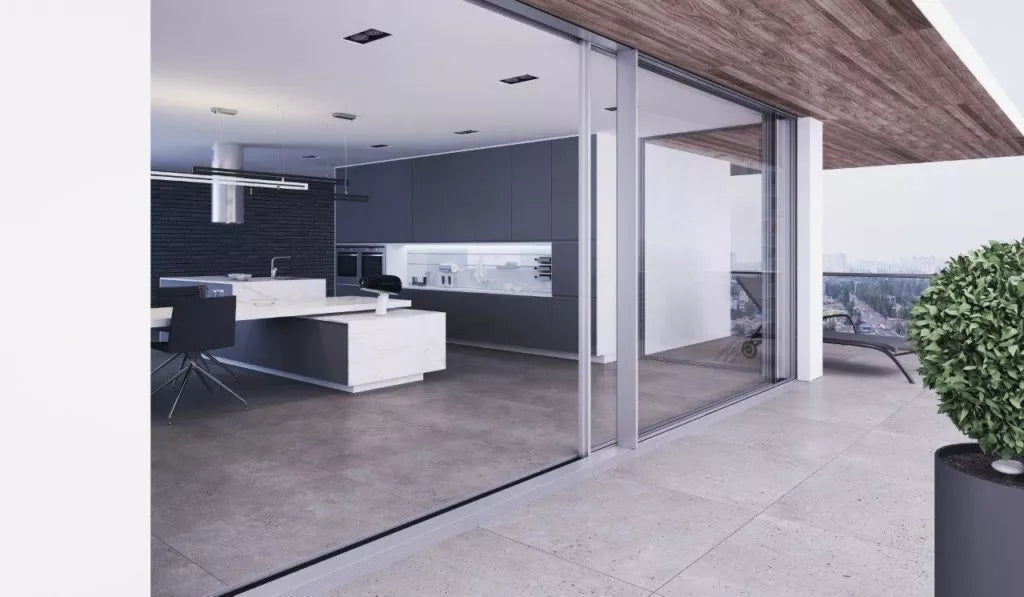

The Aluprof MB-SKYLINE TYPE R is a cutting-edge, large-scale sliding door system defined by its invisible frame and minimalist design.

The frame profiles are entirely concealed within the walls, floor, and ceiling, giving the construction a contemporary, ultra-minimalist look and providing users with a truly panoramic view.

Invisible Aesthetic: The door leaf profile is completely hidden, and the central mullion where leaves meet measures only 0.98 inches (25 mm) wide.
Massive Scale: Capable of producing monumental glass walls up to 13.1 feet (4 meters) high.
Extreme Capacity: The moving panel can weigh up to 1653 pounds (750 kg) manually, and up to 2646 pounds (1200 kg) with the concealed automatic drive system [MB-SKYLINE TYPE R Sliding door system with a concealed frame - Aluprof].
Smart Operation: The door can be opened manually or automatically, with the drive and control units cleverly concealed within the frame profiles.

Pricing Information (US Estimates)

The MB-SKYLINE TYPE R is an innovative, high-end system that ranks among the most premium sliding doors on the market.

Estimated Starting Price: A reference size door (approx. 13 ft by 8 ft 10 in, triple-glazed) starts from approximately $11,588 USD [Aluprof MB-Skyline Aluminum Sliding Door System | For B2B - debesto].
Automated Pricing: The cost increases significantly when adding the concealed automatic drive unit, with estimates reaching over $19,000 USD [TOP slim-frame aluminum sliding doors - debesto].
Recommendation: Due to the complexity and custom nature of this system, detailed pricing is only available via project-specific quotes.

Orders over $800 ship free
30 day returns

Material & Dimensions

Thermal and Weather Ratings

Overall Door Insulation (Uw): From 0.15 BTU per hr sq ft F (0.85 W per meter squared Kelvin) [The slender-profiled, sliding door system MB-SKYLINE TYPE R / MB-SKYLINE - Aluprof].
Air Permeability: Class 4 (Highest rating, EN 12207) [MB-Skyline TYPE R | Aluprof | Profiles | Windows - Feneste].
Watertightness: Class 9A (600 Pa, EN 12208).
Wind Load Resistance: Up to Class C5 (2000 Pa, EN 12210).

Construction and Capacity

Max Leaf Weight (Manual): Up to 1653 pounds (750 kg).
Max Leaf Weight (Automatic): Up to 2646 pounds (1200 kg) [MB-SKYLINE TYPE R Sliding door system with a concealed frame - Aluprof].
Max Height: 13.1 feet (4 meters).
Glazing Thickness Range: Supports 2.05 inches to 2.36 inches (52 to 60 mm), designed for triple glazing.
Leaf Profile Depth: 2.80 inches (71 mm).
Frame Depth (2-Rail): 7.48 inches (190 mm).
Visible Mullion Width: 0.98 inches (25 mm) where leaves meet.
Frame Design: Features a shallow 0.91-inch (23 mm) deep frame.
