Aluprof MB SR50N HI Facade | High Thermal Performance | Max 1100 kg Load | Easy Install

Name: Aluprof MB SR50N HI Facade | High Thermal Performance | Max 1100 kg Load | Easy Install
Brand: Aluprof
Availability: InStock

$0.00

780 in stock

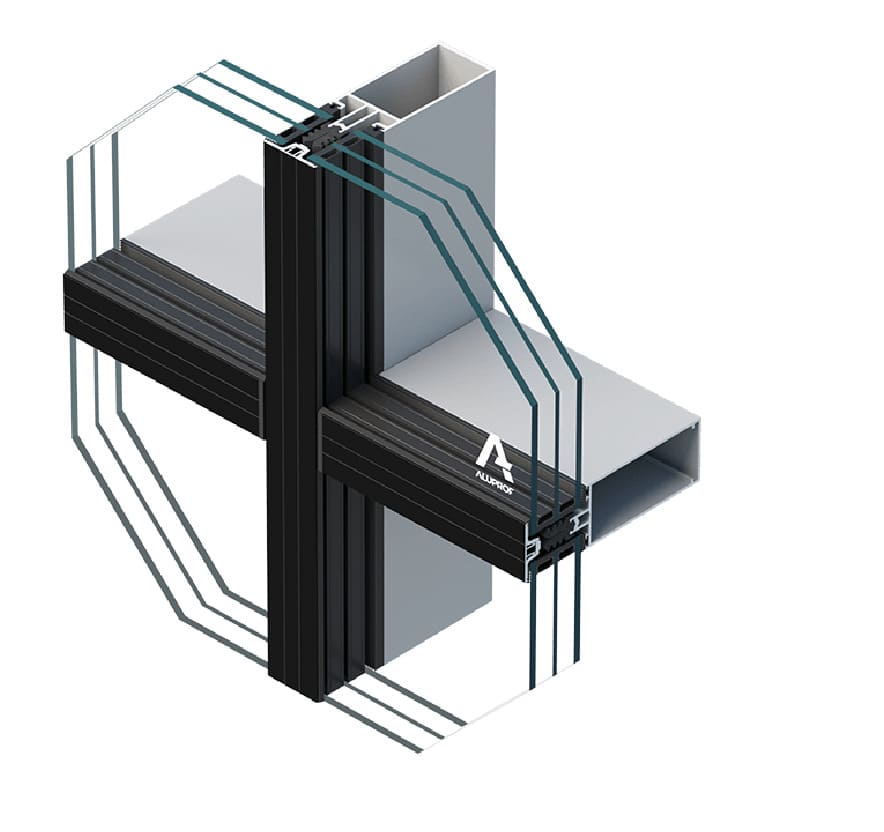

The Aluprof MB SR50N HI is a versatile and aesthetically modern aluminum mullion-transom curtain wall system, specifically engineered to achieve exceptional thermal performance.

This is achieved through the use of special two-component insulators (based on HPVC and flexible material) that minimize heat transfer and air flow within the façade's thermal zone.

Ease of Installation: The system is very easy to install due to its design, flexible materials, and diverse slim profiles.
Modern Aesthetics: Features a characteristic "sharp edge" on the mullions and transoms, which gives the structure a modern and aesthetically pleasing look with narrow division lines.
High Load Capacity: The design allows for an infill in a fixed module of the façade to weigh up to 2425 pounds (1100 kg), accommodating large-dimension glazing units.
Design Flexibility: It is the basis for several aesthetic variants, including the PL (Horizontal and Vertical Line) version and the EFEKT (semi-structural) version [MB-SR50N Mullion-transom curtain wall - Aluprof].
Integration: Designed to easily integrate various types of opening elements, including facade-integrated windows and doors like the MB-70HI system [MB-SR50N HI Mullion and transom curtain wall with high thermal performance - Aluprof].

Pricing Information (US Estimates)

Curtain wall systems are priced on a per-project basis due to the custom nature of the engineering, profile depths, and glass specifications.

Pricing Context: As a highly specialized system for architectural projects, quotes must be obtained directly from a supplier or the parent company [Glass facade system - MB- SR50N HI - Aluprof S.A - ArchiExpo].
Factors Affecting Price: The cost is determined by the total square footage, the depth of the mullions and transoms required for wind load, the thermal insulation requirement (HI vs HI+), and the final finish (color/texture).

Orders over $800 ship free
30 day returns

Material & Dimensions

Performance and Ratings

Frame Thermal Insulation (Uf): From 0.18 BTU per hr sq ft F (1.0 W per meter squared Kelvin) for the standard HI version [MB-SR50N Mullion-transom curtain wall - Aluprof]. The most enhanced HI+ variant can achieve a Uf down to 0.10 BTU per hr sq ft F (0.59 W per meter squared Kelvin).
Air Permeability: Class AE 1200 Pa (EN 12152).
Watertightness: Up to RE 1500 Pa (EN 12154).
Wind Load Resistance: Up to 2400 Pa (EN 13116).
Impact Resistance: Class I5/E5 (EN 14019).

Construction and Capacity

Profile Elevation Width: 1.97 inches (50 mm).
Mullion (Vertical) Depth Range: 2.56 inches to 12.80 inches (65 to 325 mm).
Transom (Horizontal) Depth Range: 0.20 inches to 7.46 inches (5 to 189.5 mm).
Max Infill Weight: Up to 2425 pounds (1100 kg).
Glazing Thickness Range: Supports glass or panel thickness from 0.94 inches to 2.05 inches (24 mm to 52 mm) [MB SR50N HI - Aluprof - Alumglass].
Aesthetics: Profiles feature "sharp edges" and can be selected to be flush with each other on the inside surface of the façade, creating a truss-like appearance.
