Aluprof MB-TT50 Facade System | Exceptional Thermal Uf 0.09 | 3-Zone Drainage & Easy Assembly

Name: Aluprof MB-TT50 Facade System | Exceptional Thermal Uf 0.09 | 3-Zone Drainage & Easy Assembly
Brand: Aluprof
Availability: InStock

$0.00

8000 in stock

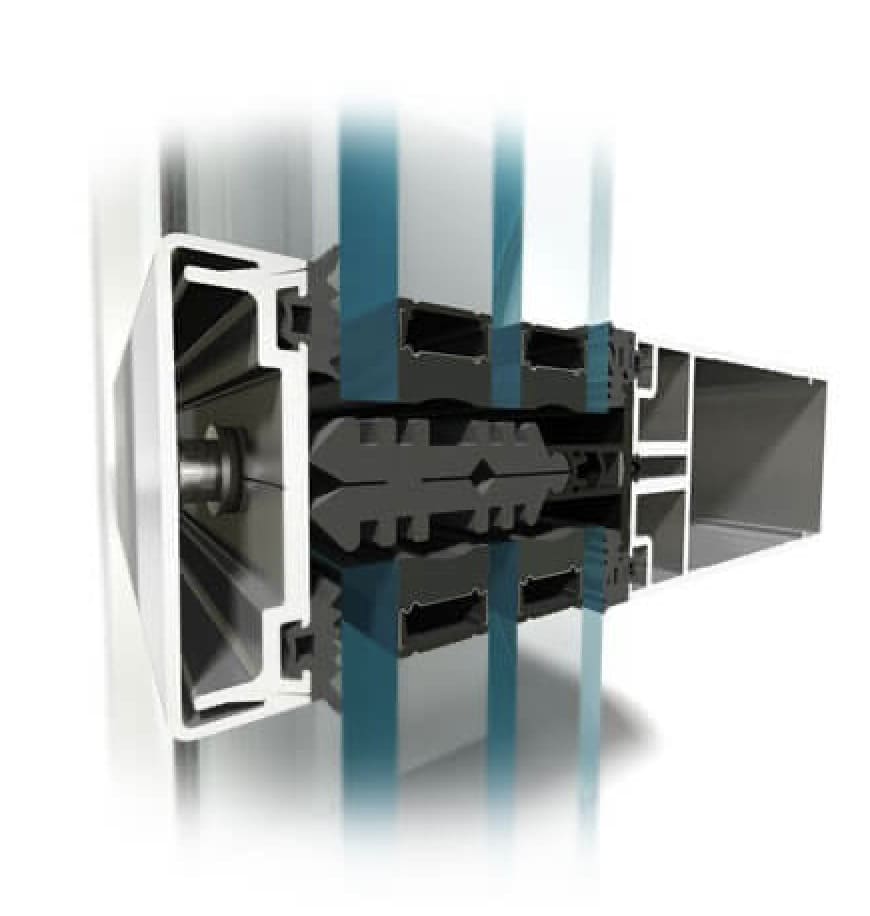

The Aluprof MB-TT50 is an innovative aluminum stick-system curtain wall that goes a step beyond standard façades in terms of performance and functionality.

It is highly recommended for energy-efficient constructions due to its exceptional thermal insulation and superior weather performance.

Innovative Weather Protection: Features a special 3-zone cascade drainage and ventilation system in the glazing rebates, reinforced with a set of gaskets to provide maximum protection against unfavorable weather conditions.
Time-Saving Assembly: The innovative design saves time and cost on fabrication due to its square-cut transom-to-mullion connection, allowing for easier and quicker assembly.
Aesthetic Versatility: The system supports a wide range of angular connections, allowing for greater design flexibility and the use of large, heavy glazing panes.
Security Ready: The standard configuration can be enhanced to conform to high security requirements (including anti-burglary and fire resistance).

Orders over $800 ship free
30 day returns

Material & Dimensions

Performance and Ratings

Frame Thermal Insulation (Uf): From 0.09 BTU per hr sq ft F (0.5 W per meter squared Kelvin) [MB-TT50 - Alumglass].
Watertightness: Class RE 1800 Pa (according to EN 12155:2004; EN 12154:2004).
Air Permeability: Class AE 1350 Pa (according to EN 12153:2004; EN 12152:2004).
Wind Load Resistance: 2700 Pa (according to EN 12179:2004, EN 13116:2004).
Impact Resistance: Class I5/E5
CWCT Compliant: Confirmed compliance with the Centre for Window and Cladding Technology (CWCT) standards

Construction and Capacity

Max Façade Pane Weight: Up to 1323 pounds (600 kg).
Max Glazing Range: Up to 2.52 inches (64 mm)
Mullion (Vertical) Depth: 2.56 inches to 9.65 inches (65 to 245 mm).
Transom (Horizontal) Depth: 2.52 inches to 9.61 inches (64 to 244 mm).
Integration: The system is compatible with various windows and doors, including concealed vents, parallel windows, and roof vents [MB-TT50 - Alumglass].
Construction Options:
Supports traditional mullion-transom construction and the semi-structural EFEKT glazing option
