Our Muntin and Grille Windows combine timeless aesthetics with modern thermal and sound protection.

Historically used to create large window surfaces, they are now primarily chosen for their distinctive visual appeal, ideal for renovation and adding unique design flair.

We offer extensive customization options in material, color, and grille style to ensure the window perfectly suits your project's aesthetic, including those for historic or landmarked buildings.

These windows do not sacrifice quality; they are available with high-level thermal and sound protection and safety glass options.

Available Frame Materials

We offer high-quality Muntin Windows in the following core frame materials:

Plastic (PVC) and Plastic-Aluminum Composite
Wood and Wood-Aluminum Composite
Aluminum

Grille (Muntin) Types and Characteristics

We offer three primary types of grilles, categorized as True Divided Light (Glasteilend) and False (Applied/Internal) types.

1. Internal Grille (Helima Grille)

Description: The grille is placed inside the space between the panes of the double or triple glazing.
Key Advantage: Easiest to clean as the glass surface remains continuous.
Grille Material: Typically available in Aluminum (though coated or foiled).

2. Applied Grille (Wiener Grille / Stick-On)

Description: A spacer bar is placed inside the glazing, and the grille elements are adhered to both the interior and exterior sides of the window pane. This creates the optical effect of a true division.
Key Advantage: Closest visual appearance to a True Divided Light window. Grille material options include Wood, Plastic, or Metal.
Note: Requires higher effort for window cleaning due to the raised elements on the glass.

3. True Divided Light Grille (Glasteilende Grille)

Description: This is the original construction where each section of the grille separates two individual small glass panes.
Key Advantage: Authentic, classic construction type. Grille material options include Wood, Plastic, or Composite.
Note: Requires higher effort for window cleaning and careful selection of glazing to maintain energy efficiency.

Orders over $800 ship free
30 day returns

Material & Dimensions

Detailed Grille Thickness Specifications

These specifications detail the available widths (thicknesses) of the Grille elements, which vary based on the window frame material and the grille type selected. All dimensions are provided in both millimeters (mm) and approximate US inches (in).

Plastic (PVC) Window Frames:

Internal Grilles: Available in 18 mm (approx. 0.7 in), 26 mm (approx. 1.0 in), and 45 mm (approx. 1.8 in).
Applied Grilles: Available in 26 mm (approx. 1.0 in) and 46 mm (approx. 1.8 in).
True Divided Light Grilles: Available in 70 mm (approx. 2.8 in), 84 mm (approx. 3.3 in), and 104 mm (approx. 4.1 in).

Plastic-Aluminum Composite Frames:

Internal Grilles: Available in 18 mm (approx. 0.7 in), 26 mm (approx. 1.0 in), and 45 mm (approx. 1.8 in).
Applied Grilles: Available in 26 mm (approx. 1.0 in).
True Divided Light Grilles: Available in 70 mm (approx. 2.8 in), 84 mm (approx. 3.3 in), and 104 mm (approx. 4.1 in).

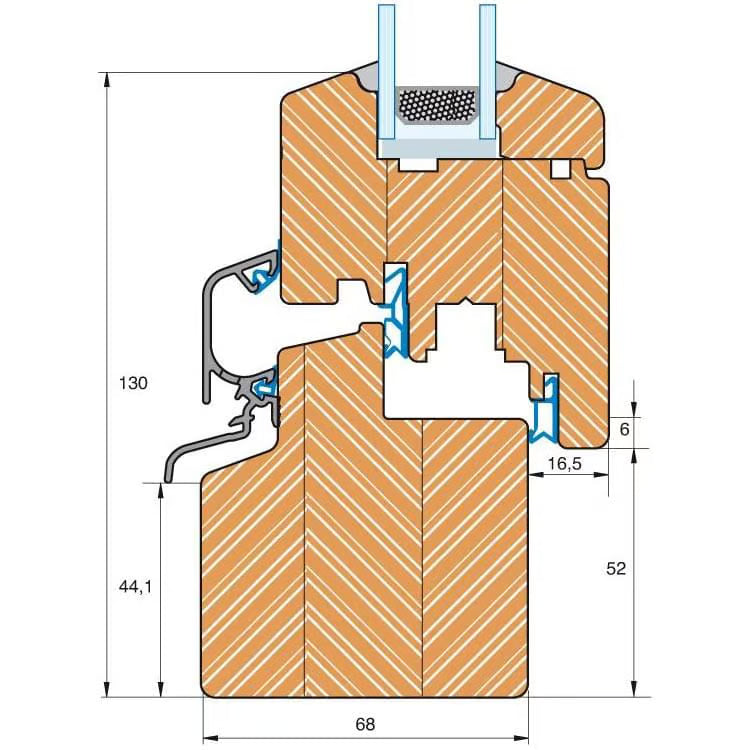

Wood Frames:

Internal Grilles: Available in 26 mm (approx. 1.0 in) and 45 mm (approx. 1.8 in).
Applied Grilles: Available in 22 mm (approx. 0.9 in), 32 mm (approx. 1.3 in), and 42 mm (approx. 1.7 in).
True Divided Light Grilles: Available in 55 mm (approx. 2.2 in), 80 mm (approx. 3.1 in), and 130 mm (approx. 5.1 in).

Wood-Aluminum Composite Frames:

Internal Grilles: Available in 26 mm (approx. 1.0 in) and 45 mm (approx. 1.8 in).
Applied Grilles: Available in 26 mm (approx. 1.0 in), 32 mm (approx. 1.3 in), and 42 mm (approx. 1.7 in).
True Divided Light Grilles: Available in 76 mm (approx. 3.0 in) and 120 mm (approx. 4.7 in).

Aluminum Frames:

Internal Grilles: Available in 18 mm (approx. 0.7 in), 26 mm (approx. 1.0 in), and 45 mm (approx. 1.8 in).
Applied Grilles: Available in 26 mm (approx. 1.0 in).
True Divided Light Grilles: Not available for this material.

Thermal Performance Notes for Grille Types

Continuous Pane Grilles (Internal and Applied): These designs minimize impact on the window's U-value (thermal efficiency). They easily maintain excellent thermal protection.
Divided Pane Grilles (True Divided Light): Due to the interruptions in the glass, these may create minor thermal bridges. We strongly recommend selecting triple-pane glazing with a thermal edge seal for the best energy performance with this classic style.
