The Kömmerling 70 AD is a foundational uPVC (plastic) window system, known as the Kömmerling basic system, combining a classic design with high technical performance.

Its construction depth of 70 mm (2.76 inches) and innovative 5-chamber technology provide reliable thermal and acoustic insulation. This system is an affordable and effective choice for both new buildings and replacement of old windows.

Balanced Performance: The 5-chamber design allows for noticeable heating cost savings and excellent sound insulation. The overall window U-value (Uw) can be as low as 0.92 W/m2K (0.16 BTU per hour per square foot per degree Fahrenheit).
Durable and Low-Maintenance: The windows are manufactured with a modern technological process that includes lead-free stabilizers, making them weather-resistant, easy to care for, and environmentally friendly.
Versatile Glazing and Design: The system can accommodate wide glazing units up to 44 mm (1.73 inches) thick, allowing for the use of high-performance triple glazing. Its offset sash design has straight lines for a classic look and slim profiles to maximize light penetration and solar gain.
Security Features: The profile is designed to accommodate the latest anti-burglary fittings and includes standard features like steel reinforcement and a full-depth, central eurogroove for enhanced security. Security can be upgraded to Resistance Class 2 (RC2).

c. Pricing Information (US Estimates)

The Kömmerling 70 AD system is positioned as a cost-effective basic system that offers good performance.

Starting Price (European): The material starting price is listed as 28 EUR (approximately 30 USD), a 15 percent discount from the original 33 EUR (approximately 35 USD). This price includes 19 percent VAT, but excludes shipping costs.
Cost Factors: The final price depends on the dimensions, the type of glazing chosen (double or triple), and any color or security upgrades.
Quote Requirement: Customers must use the "Calculate price" button to receive a final, customized quote.
Payment Options: Payment is available in 3-24 monthly installments via PayPal.

Orders over $800 ship free
30 day returns

Material & Dimensions

Brand: Kömmerling

Model/Product Name: Kömmerling 70 AD

Product Type: uPVC Plastic Window (Kunststofffenster)

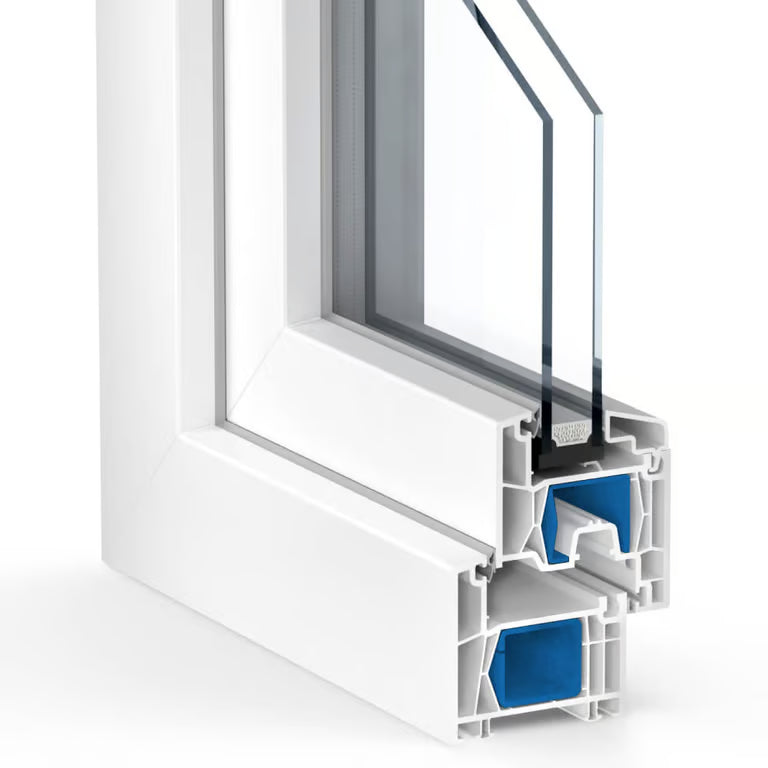

Profile Chambers: 5-chamber system

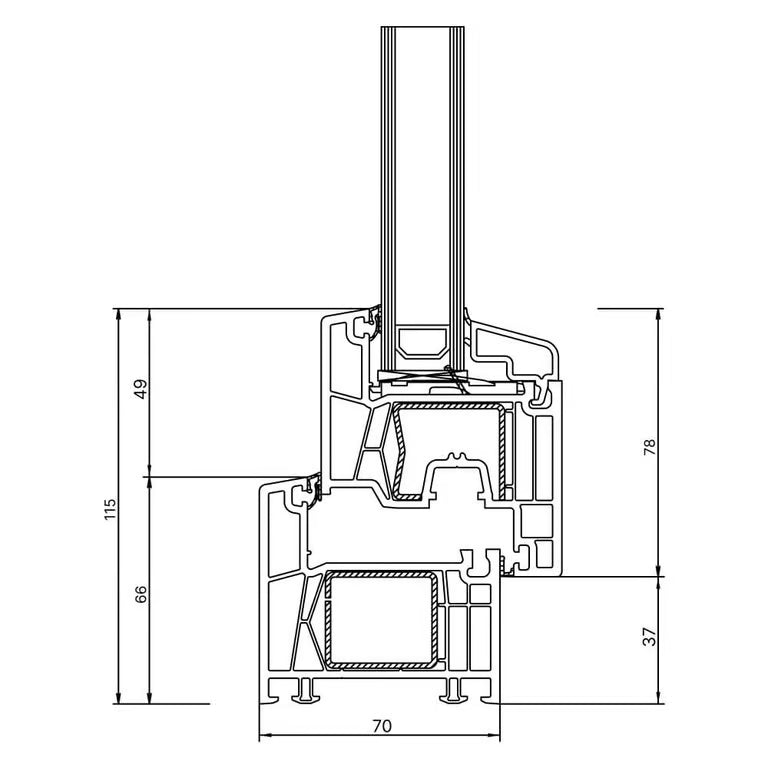

Installation Depth (Bautiefe): 70 mm (2.76 inches) base width

Profile U-Factor (Uf): Up to 1.2 W/m2K (0.21 BTU per hour per square foot per degree Fahrenheit). Uf is up to 1.3 W/m2K (0.23 BTU per hour per square foot per degree Fahrenheit) in some configurations.

Overall Window U-Value (Uw): Greater than or equal to 0.92 W/m2K (0.16 BTU per hour per square foot per degree Fahrenheit). Can be as low as 1.0 W/m2K (0.18 BTU per hour per square foot per degree Fahrenheit) with Ug = 0.6 W/m2K.

Sealing System: Double seal / two sealing levels (Anschlagdichtungssystem mit 2 Ebenen).

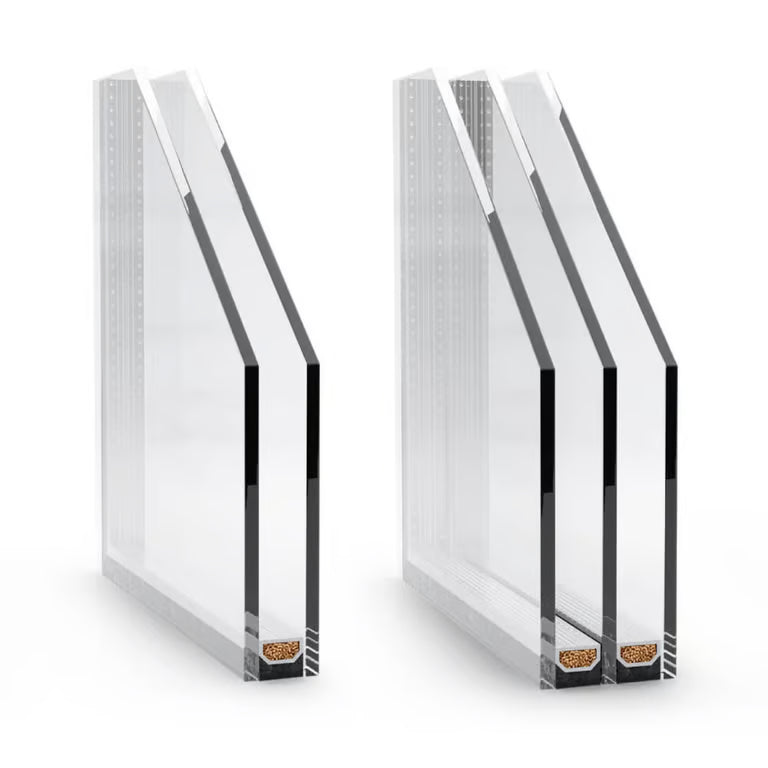

Glazing Options: Double and triple glazing available.

Maximum Glazing Unit Thickness: Up to 44 mm (1.73 inches) thick.

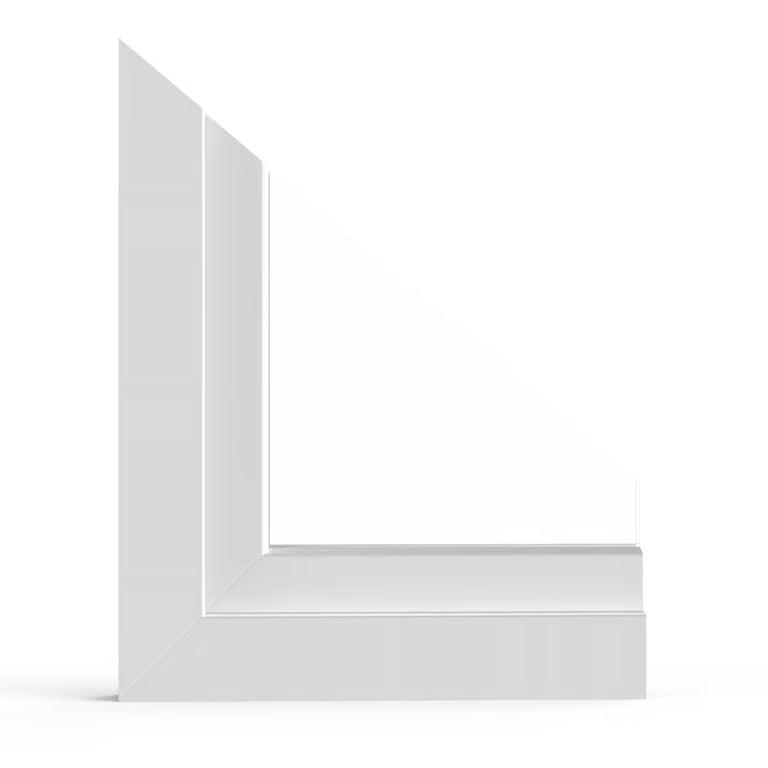

Profile Appearance: Offset design (Flächenversetzt) with a classic/angular look. Also available in "ovolo" (soft sculptured lines) design (O70).

Reinforcement: Built-in steel reinforcement is used where needed to add structural strength.

Minimum Dimensions (Breite/Höhe): From 51 cm (20.08 inches) wide; From 51 cm (20.08 inches) high.

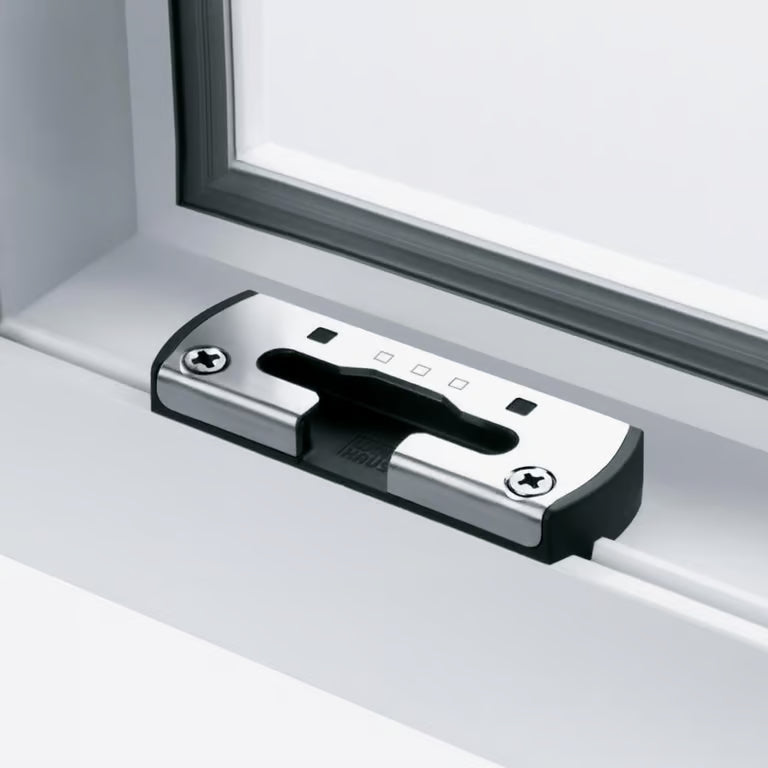

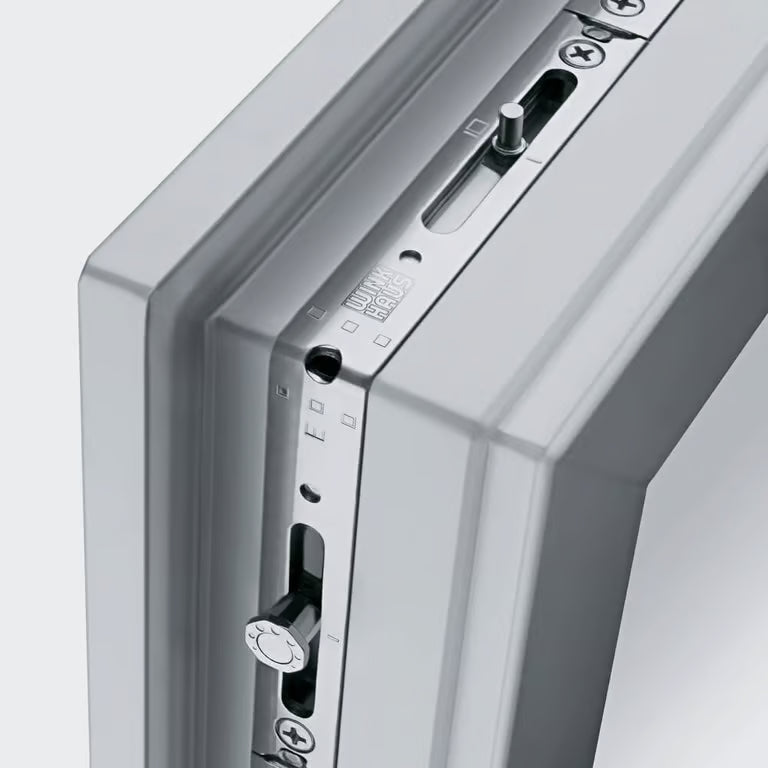

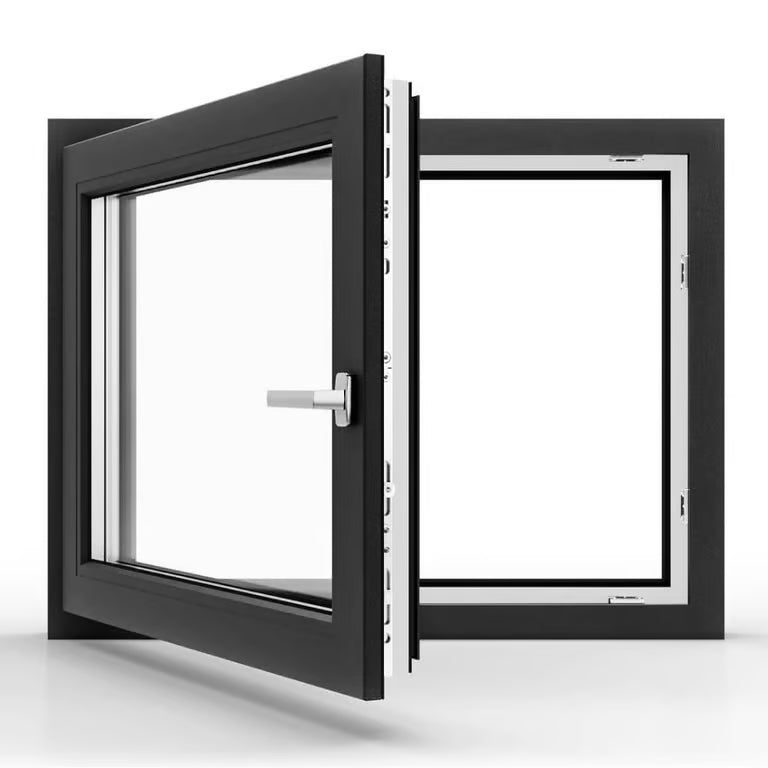

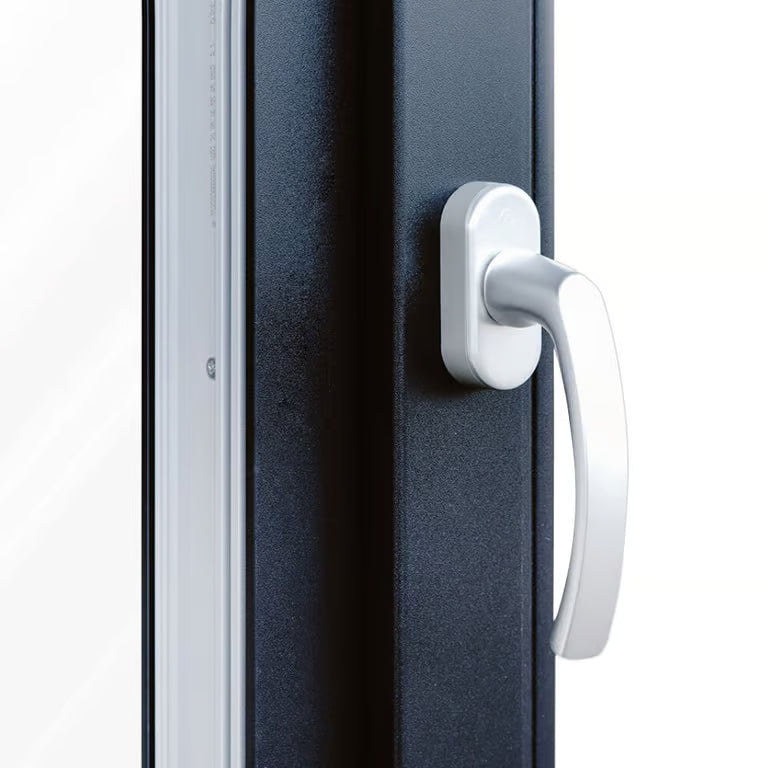

Hardware/Fittings: Designed to accommodate modern security hardware and multi-point locking mechanisms. Includes two locking bolts as standard security.

Security Features: Superior break-in protection, upgradable to Resistance Class 2 (RC2) with extra security fittings. Compliant with PAS 24 and Secured by Design.

Material Composition: uPVC with lead-free stabilizers (greenline label) based on calcium and zinc.

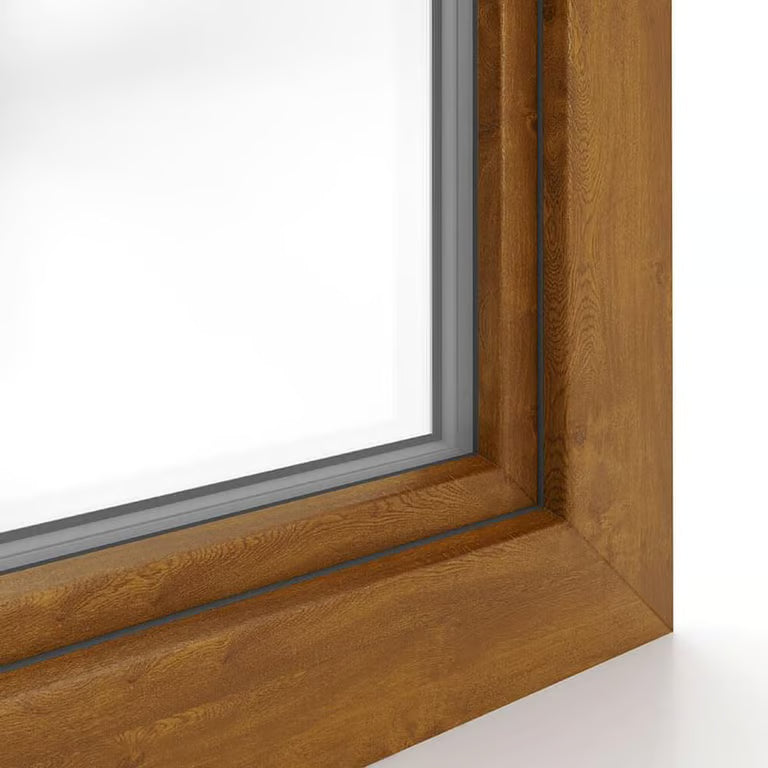

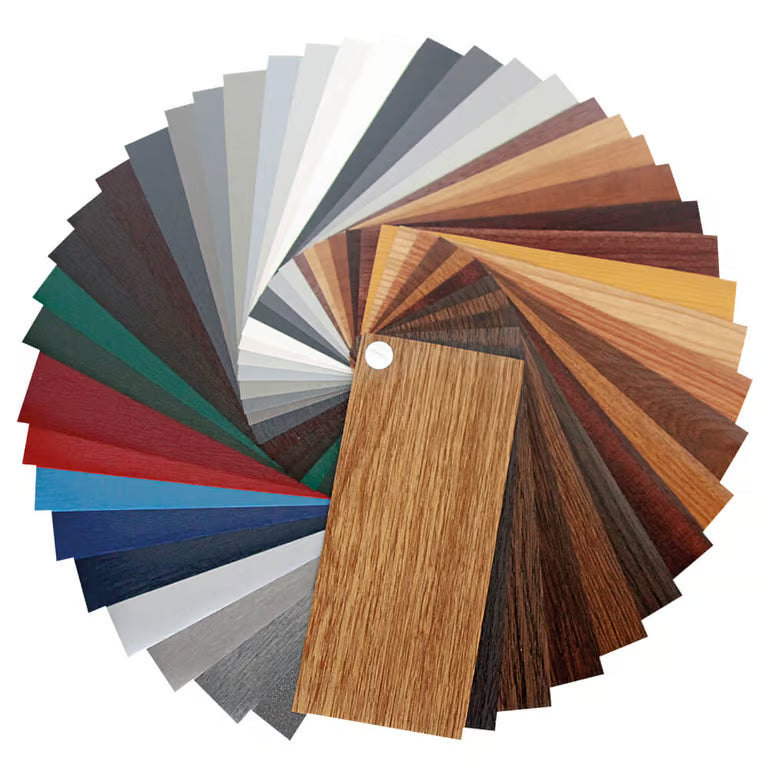

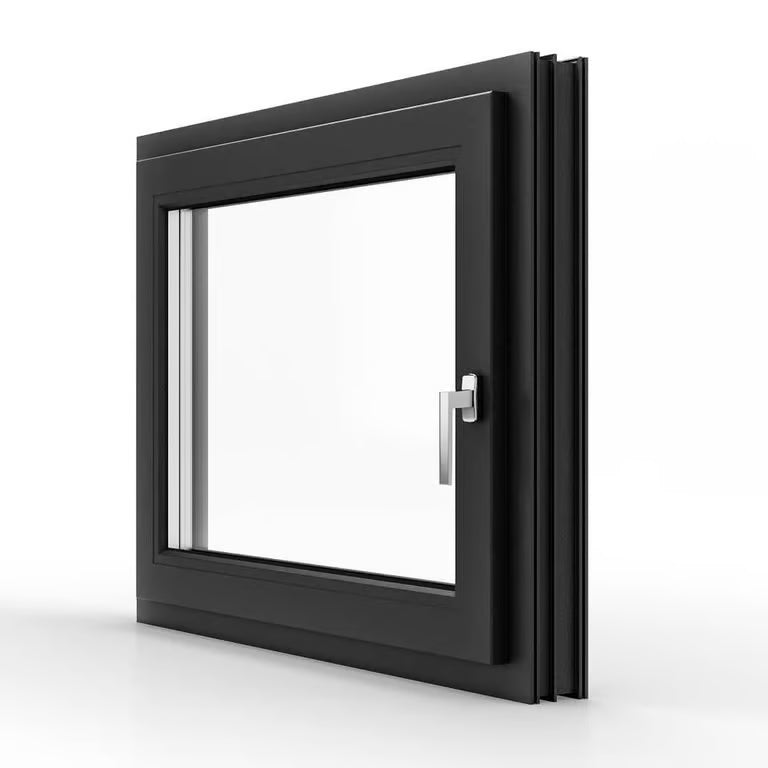

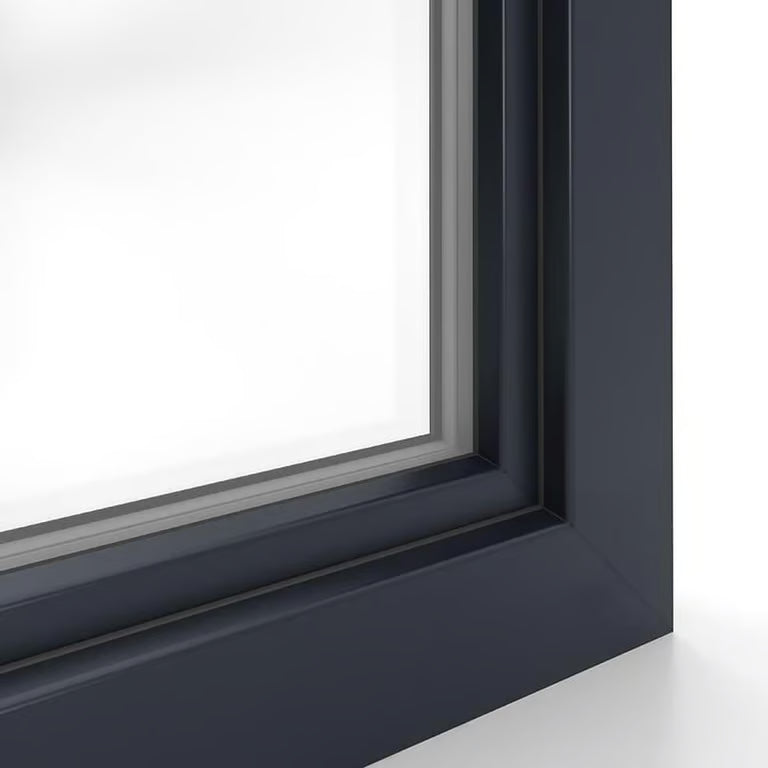

Variants/Finishes: Available in white, laminated woodgrain designs, plain colors, and metallic colors. Over 40 colors are available across the 70 systems.

Certifications/Ratings: Compliant to Document Q for New Build applications. Air permeability Class 4. Watertightness Class 6A. Wind load resistance Class C3. Sound insulation up to 45 dB (decibels).

Delivery Time: Estimated 2-5 weeks.
