Kömmerling 88 MD | uPVC Passive House Window | 7 Chamber Triple Seal System

Name: Kömmerling 88 MD | uPVC Passive House Window | 7 Chamber Triple Seal System
Brand: Fensterversand
Price: 51.00 USD
Availability: InStock

$51.00

999 in stock

The Kömmerling 88 MD is a high-performance uPVC window system developed for low-energy and passive-house construction. With its deep 88 mm frame, 7-chamber profile, and triple central sealing system, it delivers excellent thermal insulation, sound reduction, and long-term structural stability. This system is ideal for modern residential and commercial projects where maximum energy efficiency and durability are required.

The angular offset sash design provides a modern architectural appearance while maintaining a strong glass-to-frame ratio for increased natural light. The system supports advanced triple glazing and a wide range of functional glass options including safety, sound-insulating, and privacy glass.

Engineered for demanding building standards, the Kömmerling 88 MD is suitable for new construction, energy-efficient renovations, and passive-house-level projects.

Pricing Information (Reference)

European starting price from manufacturer partner
Approximately 47 EUR including VAT
Approximate USD equivalent 51 USD
Shipping not included

Final pricing depends on:

Window size
Glazing type (double or triple, safety or sound glass)
Colour and surface finish
Hardware and security options

All projects require a custom quote based on exact dimensions.

Orders over $800 ship free
30 day returns

Material & Dimensions

General System Data
Brand: Kömmerling
Model: 88 MD
Product type: uPVC window system with middle seal
Application: Low-energy and passive-house construction

Profile and Construction
Profile system: 7-chamber uPVC profile
Construction depth: 88 mm (3.46 inches)
Sealing system: Triple seal with central middle gasket
Design: Angular offset sash design

Dimensions
Minimum element width: 51 cm (20.08 inches)
Minimum element height: 51 cm (20.08 inches)

Glazing Options
Standard glazing: Triple glazing
Supported glazing types: Double glazing, triple glazing, safety glass, sound insulation glass, privacy glass
Maximum glazing thickness: 58 mm (2.28 inches)

Thermal and Acoustic Performance
Overall window Uw value: From approx. 0.72 W per m2K (approx. 0.13 BTU per hour per square foot per degree Fahrenheit)
Sound insulation: Up to sound insulation class 5 with suitable glass

Security
Standard locking: Two locking points
Optional upgrade: Security fittings up to RC2 resistance class

Materials and Sustainability
Frame material: uPVC plastic
Reinforcement: Internal steel reinforcement
Environmental concept: Lead-free stabilisers, recyclable materials

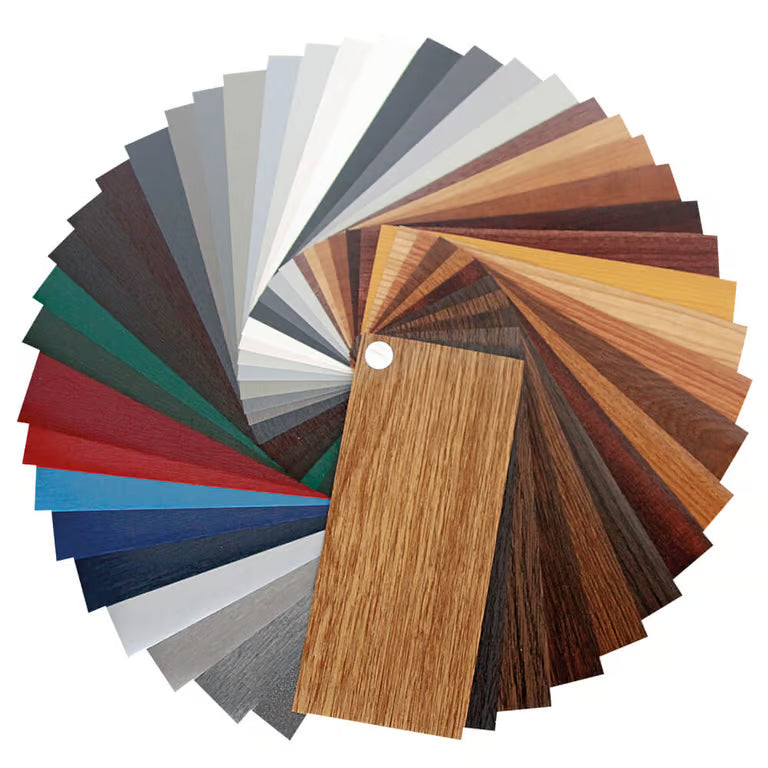

Colours and Surfaces
Standard colour: White
Optional finishes: Wood-look decors, solid colours, weather-resistant foils

Estimated Delivery Time
Approximately 2 to 5 weeks depending on configuration
