Reynaers CS 68 Aluminum Window System | 2.7 Inch Depth | Versatile Aesthetics & RC3 Security

Name: Reynaers CS 68 Aluminum Window System | 2.7 Inch Depth | Versatile Aesthetics & RC3 Security
Brand: Schuco
Price: 729.00 USD
Availability: InStock

$729.00

1200 in stock

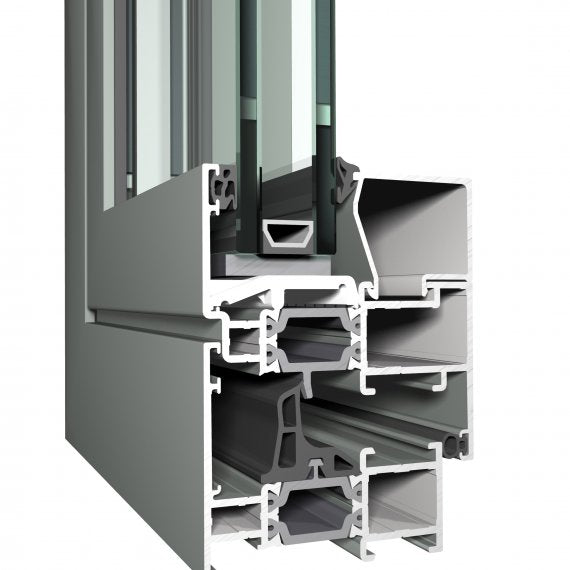

The Reynaers CS 68 (Concept System 68) is a universal, three-chamber aluminum system designed for maximum thermal insulation, security, and stability across various building types.

It offers an excellent balance of quality, features, and price, making it a reliable solution for both new construction and renovation projects.

Universal Application: Ideal for both windows and flush doors, and compatible with Reynaers' CP 130 and CP 155 sliding systems.
Aesthetic Flexibility: Available in four distinct styles, ensuring the windows can perfectly match the architectural style of your building.
High Security: Meets demanding anti-burglary standards, capable of achieving resistance up to the RC3 class.

Pricing Information (US Estimates)

As a European-made, custom-built system, pricing is highly variable based on style, size, and chosen security class.

Estimated Starting Price (US): A reference tilt and turn window (approx. 36 inches x 60 inches) starts from around $729 USD.
Factors Affecting Price: Choosing the Hidden Vent or Renaissance style, upgrading to RC3 security, or increasing the size will raise the cost significantly.
Recommendation: Due to the wide variety of styles and technical configurations, please contact us for a detailed, project-specific quote.

Premium Finishes: Profiles can be finished in a wide range of over 250 RAL colors, metallic, anodized, and even specialized woodgrain finishes.

Orders over $800 ship free
30 day returns

Material & Dimensions

Thermal and Weather Ratings

Construction Depth (Vent): 68 mm (approx. 2.7 inches).
Construction Depth (Frame): 59 mm (approx. 2.3 inches).
Frame Thermal Insulation (Uf): Starting from 1.8 W per meter squared Kelvin (approx. 0.32 BTU per hr sq ft F).
Whole Window Insulation (Uw): Can achieve values as low as 1.22 W per meter squared Kelvin with the appropriate glazing.
Air Permeability: Class 4 (Highest rating, 600 Pa).
Watertightness: Class 9A (600 Pa) or Class E 1200 (1200 Pa) depending on configuration.
Wind Load Resistance: Class C4 (1600 Pa) or C5 (2000 Pa).
Acoustic Performance (Rw): Up to 46 dB.

Construction and Capacity

Max Glass Thickness: Up to 54 mm (approx. 2.1 inches).
Max Vent Weight: Up to 170 kg (approx. 375 pounds).
Max Vent Height: 2800 mm (approx. 9.2 feet).
Max Vent Width: 1200 mm (approx. 3.9 feet).
Design Features: Utilizes double butt strips between the frame and vent and lowered drainage for superior wind and water tightness.

Available Styles and Operation

Opening Types: Offers a comprehensive range of solutions for both inward and outward opening windows and doors.
Aesthetic Styles:
Functional: Standard, clean profile lines.
Hidden Vent: Sash is concealed behind the frame for a minimalist, glass-only exterior look.
Softline: Features rounded profile shapes.
Renaissance: Imitates wooden profiles for a more traditional or classic appearance.
Compatibility: Fully compatible with Ventalis ventilation units.
