The Reynaers CS 77 is an extremely versatile, multi-chamber aluminum system that offers a perfect balance of minimal build depth and high performance.

Its unique design meets the highest European standards for thermal insulation, security, and stability.

This system is ideal for a broad range of projects, from high-end residential to commercial security applications.

Exceptional Versatility: The system is suitable for various applications, including windows, doors, shop fronts, and spatial structures, and pairs perfectly with Reynaers' sliding systems and aluminum doors.
Safety Extremes: The robust design is engineered to comply with the most stringent European norms, offering specialized variants for fire resistance, bullet resistance, and high burglar resistance.

Minimal Aesthetics: Achieves a perfect price-to-performance ratio with a reduced sightline for both fixed and opening elements.

Orders over $800 ship free
30 day returns

Material & Dimensions

Performance and Ratings

Frame Thermal Insulation (Uf): Down to 1.8 W per meter squared Kelvin (approx. 0.32 BTU per hr sq ft F), depending on the frame/vent combination and glass thickness.
Whole Window Insulation (Uw): Can achieve whole window U-values as low as 0.94 W per meter squared Kelvin (approx. 0.17 BTU per hr sq ft F) with triple glazing.
Air Permeability: Up to Class 4 (600 Pa).
Watertightness: Up to Class 9A (600 Pa) or Class E 1200 (1200 Pa) depending on configuration.
Wind Load Resistance: Up to Class C5 (2000 Pa).
Acoustic Performance (Rw): Up to 42 dB(A).
Burglar Resistance: Up to RC 3 (WK3) according to EN 1627.

Construction and Capacity

Min. Visible Width (Exterior Frame): 17.5 mm (approx. 0.69 inches) for the outer frame sightline.
Max Glass Thickness: 4 mm to 52 mm (approx. 0.16 to 2.05 inches), making it suitable for triple glazing.
Max Vent Weight: Up to 170 kg (approx. 375 pounds).

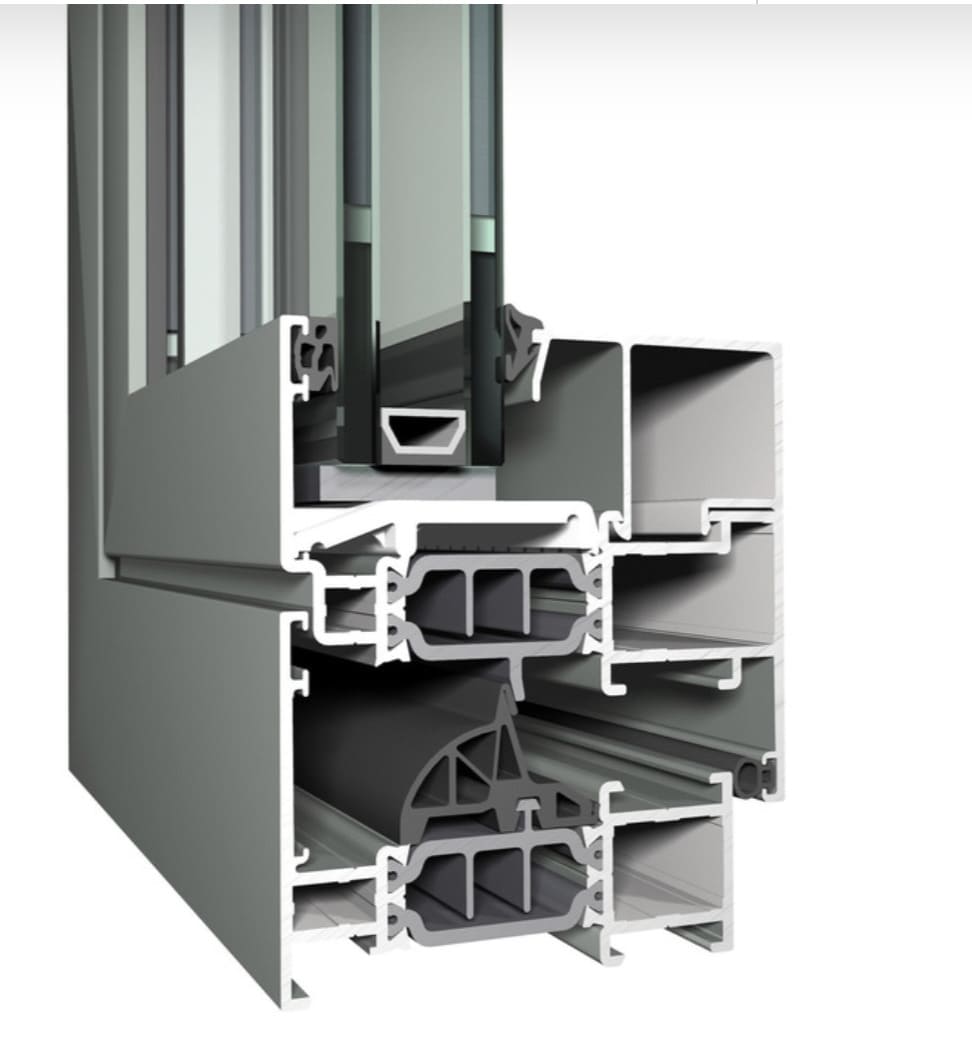

Frame/Vent Construction: Features multiple chambers and specialized thermal breaks.

Available Styles, Operation, and Smart Features

The CS 77 platform offers extensive flexibility in design and function:

Design Styles:
Functional: Standard profile lines.
Hidden-Vent: Concealed sash behind the frame for a clean, glass-only exterior look.
Softline: Features rounded profile shapes.
Blockframe: Available in Straight or Slanted options.
Renaissance: Profiles styled to mimic traditional wooden frames.
Operation Types:
Fixed Window (Single Vent, Double Vent).
Inward Opening (Side Hung, Tilt and Turn, Bottom Hung).
Outward Opening (Side Hung, Double Vent).
Smart Features: Supports optional add-ons like sills, sunshades, and automatic opening systems (automatic opening system mentioned in general door features).
Customization: Panel thickness, handle position, and profile colors (inside/outside) are fully customizable.
