Reynaers MasterLine 10 Passive House Certified Window | Uw 0.14 BTU | Extreme Insulation & RC3 Security

Name: Reynaers MasterLine 10 Passive House Certified Window | Uw 0.14 BTU | Extreme Insulation & RC3 Security
Brand: Raynaers
Availability: InStock

$0.00

1220 in stock

The Reynaers MasterLine 10 is the ultimate choice for achieving superior thermal performance and is independently certified by the Passive House Institute (PHI) Darmstadt [MasterLine 10 in the Passive House Portal component database].

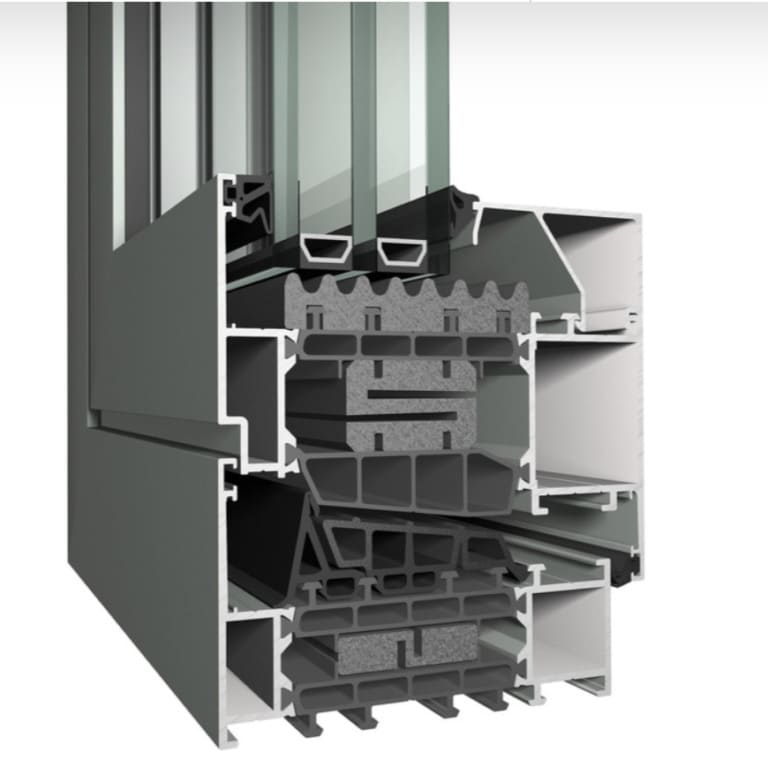

This system features an innovative construction, including an insulated chamber with XPS foam and a low lambda polyamide bar, ensuring best-in-class energy efficiency and minimal heat loss.

Passive House Standard: Meets the most stringent requirements for low-energy and Passive House construction, providing long-term energy savings.
Maximum Daylight: Optimized design allows for maximum glass access, providing superior daylight and comfort without compromising insulation.
Extreme Weather Resistance: Guarantees reliable performance, high stability, and protection against extreme weather conditions.
Security & Durability: Engineered for high stability and meets demanding security standards for peace of mind.

Pricing Information (US Estimates)

The MasterLine 10 is the pinnacle of the Reynaers line, reflected in its premium price point.

Cost Factor: As a custom, certified Passive House component, the price is significantly higher than standard aluminum systems.
Recommendation: Due to the complexity of the design and the variety of options (e.g., Deco, Renaissance, Burglarproof), please contact us directly for a detailed, project-specific quote. We recommend obtaining a specific price based on your chosen design variant and overall project dimensions.

Orders over $800 ship free
30 day returns

Material & Dimensions

Thermal Performance and Ratings

Frame Thermal Insulation (Uf): Down to 0.78 W per meter squared Kelvin (approx. 0.14 BTU per hr sq ft F) [MasterLine 10 in the Passive House Portal component database].
Overall Window Insulation (Uw): Certified at 0.80 W per meter squared Kelvin (approx. 0.14 BTU per hr sq ft F) [MasterLine 10 in the Passive House Portal component database].
Air Permeability: Class 4 (Highest rating, 600 Pa).
Watertightness: Up to Class E900 (900 Pa).
Wind Load Resistance: Up to Class C5 (2000 Pa).
Acoustic Performance (Rw): Up to 46 dB (STC 50 dB, OITC 44 dB) [MasterLine 10 - Windows | Reynaers Aluminium].
Burglar Resistance: Up to RC3 class (WK3) [Reynaers MasterLine 10 » Premium Aluminium Windows].

Construction and Capacity

Frame Depth: 97 mm (approx. 3.82 inches) for Functional and Block designs.
Vent/Sash Depth: 107 mm (approx. 4.21 inches).
Min. Frame-Vent Width: 104 mm (approx. 4.09 inches).
Max Glass Thickness (Windows): Up to 88 mm (approx. 3.46 inches).
Max Glass Thickness (Doors): Up to 78 mm (approx. 3.07 inches).
Max Vent Weight (Windows): Up to 200 kg (approx. 441 pounds).
Max Vent Height (Windows): 2800 mm (approx. 110 1/4 inches or 9.2 feet).

Design and Operating Features

Design Variants: The system can be adapted to four distinct styles:
Functional: Clean, simple, and flush design.
Deco: Features beveled edges for unobtrusive elegance.
Renaissance: Mimics the curves and detailing of traditional wooden joinery.
Block: Features a concealed vent for a clean, uniform look from the exterior.
Operation Types: Inward opening, Tilt and Turn, and Balcony Door options.
Smart Features: Supports options for Motorized operation, Concealed Hinges, Concealed Drainage, and Glass Corner connections for a modern, seamless look [MasterLine 10 Functional - Windows - Reynaers].
Customization: Available in all RAL colors, as well as anodized colors in aluminum, steel, or bronze look.
