Reynaers SlimLine 38 Window and Door System | Steel Look Design | U-Factor 0.17 | RC2 Security

Name: Reynaers SlimLine 38 Window and Door System | Steel Look Design | U-Factor 0.17 | RC2 Security
Brand: Raynaers
Price: 1000.00 USD
Availability: InStock

$1,000.00

750 in stock

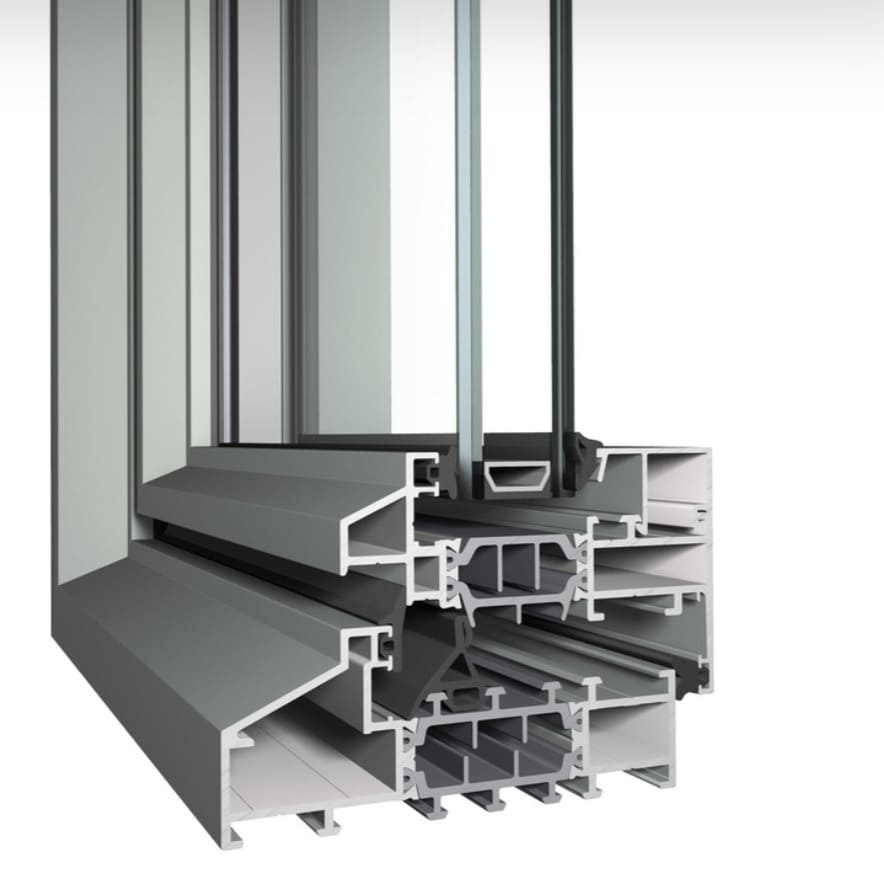

The Reynaers SlimLine 38 (SL 38) is a highly insulated aluminum system that expertly mimics the aesthetic of traditional, slender steel-framed windows.

It is the perfect solution for both modern new-builds and the renovation of older buildings, offering a unique combination of high-end design, excellent thermal performance, and superior durability.

Minimalist Aesthetic: Features very slim profiles, with a minimum frame and sash height as narrow as 2.17 inches and sightlines from just 0.83 inches.
Steel Look Variants: Available in three distinct design variants—Classic, Cubic, and Ferro—to match various architectural styles, including Bauhaus and industrial aesthetics.
Exceptional Durability: Aluminum's strength, comparable to steel, allows for the slim profile while providing high stability and resistance to weathering.
Energy Efficiency: Designed as a multi-chamber system with glass fiber reinforced polyamide bars for excellent thermal breaks.

Pricing Information (US Estimates)

The SlimLine 38 is a premium, highly aesthetic product, reflected in its price.

Starting Price Estimate: Basic tilt-and-turn reference windows start from approximately $1,000 to $1,020 USD
Fixed Glazing: Fixed Reynaers SlimLine 38 windows start from approximately $800 USD [Reynaers SlimLine 38 Fixed Glazing Window - Bauwerk Building Solutions].
Factors Affecting Price: Final cost varies based on the chosen design variant (Classic, Cubic, Ferro), level of insulation (Standard or HI), and inclusion of features like concealed hinges.

Orders over $800 ship free
30 day returns

Material & Dimensions

Thermal Performance and Ratings

Frame Thermal Insulation (Uf): Down to 1.9 W per meter squared Kelvin (approx. 0.34 BTU per hr sq ft F). Highly Insulating (HI) variants are also available.
Overall Window Insulation (Uw): Can achieve 0.96 W per meter squared Kelvin (approx. 0.17 BTU per hr sq ft F) with triple glazing.
Acoustic Performance (Rw): Up to 45 dB.
Air Permeability: Class 4 (Highest rating, 600 Pa).
Watertightness: Class 9A (600 Pa).
Wind Load Resistance: Class C4 (1600 Pa).
Burglar Resistance: Up to RC2 class (PAS 24 certified).
Fire Resistance: EW 30 (30-minute fire resistance).

Construction and Capacity

Frame Depth (Classic): 99 mm (approx. 3.9 inches).
Frame Depth (Cubic/Ferro): 76 mm (approx. 2.99 inches).
Min. Frame-Sash Height: 55 mm (approx. 2.17 inches).
Max Glass Thickness: Up to 55 mm (approx. 2.17 inches), suitable for triple glazing.
Max Vent Weight: 170 kg (approx. 375 pounds).
Max Vent Height: Up to 2800 mm (approx. 110.25 inches or 9.2 feet).
Opening Types: Inward opening (tilt and turn) and outward opening (casement).

Design and Operating Features

Design Variants:Classic: Features an inclined surface, based on the original steel-look design.
Cubic: Features an emphatically rectangular design with a stepped surface.
Ferro: Features sharp straight lines and shadow gaps, inspired by the Bauhaus style.
Hardware: Supports concealed hinges for clean, seamless lines.
Operation: Available as fixed glazing, tilt and turn, and side-hung casement windows.
Customization: Available in over 250 RAL colors, with options for decorative rungs to complete the industrial steel look.
