Schüco ASE 60 Lift-and-Slide Door | High Insulation | SmartStop & Concealed Fittings

Name: Schüco ASE 60 Lift-and-Slide Door | High Insulation | SmartStop & Concealed Fittings
Brand: Schuco
Price: 3530.00 USD
Availability: InStock

$3,530.00

1300 in stock

The Schüco ASE 60 is a versatile and scalable aluminum sliding door system that provides an excellent balance of thermal performance, aesthetic flexibility, and ease of use.

Its modular design allows it to be customized for single, double, or triple track solutions, accommodating both standard sliding and heavy-duty lift-and-slide operation.

Slim Aesthetics: Features a very narrow interlock section (mullion) of just 1.57 inches (40 mm) in the optional DesignLine variant, maximizing glass and natural light.
Accessibility: Available with a zero level threshold (Design Line) for a safe, flat transition between indoor and outdoor environments, suitable for inclusive design.
Smart Comfort: Features optional components like Schüco SmartStop and Schüco SmartClose to gently slow down the moving leaves, ensuring enhanced safety and controlled closing.
High Load Capacity: The lift-and-slide mechanism can support large door leaves, enabling monumental glass openings.

Pricing Information (US Estimates)

Schüco doors are positioned as premium products, recognized for their quality and engineering.

Estimated Starting Price: A reference size sliding door starts from approximately $3,530 USD
Factors Affecting Price: The final cost is influenced by the size, the choice of the slim 1.57-inch interlock, the inclusion of automation (TipTronic), and the required security level (RC2).

Orders over $800 ship free
30 day returns

Material & Dimensions

Performance and Ratings

Overall Door Insulation (Uw): Can achieve U-values as low as 0.20 BTU per hr sq ft F (1.1 W per meter squared Kelvin) [Schüco ASE 60 Sliding Door System - Luxal].
Overall US U-Value (NFRC): Can achieve 0.35 with high-performance glass in the standard test size [ASE 60 Lift-and-Slide Sliding Door - Schuco Academy].
Air Permeability: Class 4 (Highest rating, EN 12207).
Watertightness: Up to Class E900 (EN 12208) or 12 psf (580 Pa) [ASE 60 Lift-and-Slide Sliding Door - Schuco Academy].
Wind Load Resistance: Up to Class C5/B5 (EN 12210).
Burglar Resistance: Certified up to RC2 class (DIN V ENV 1627).

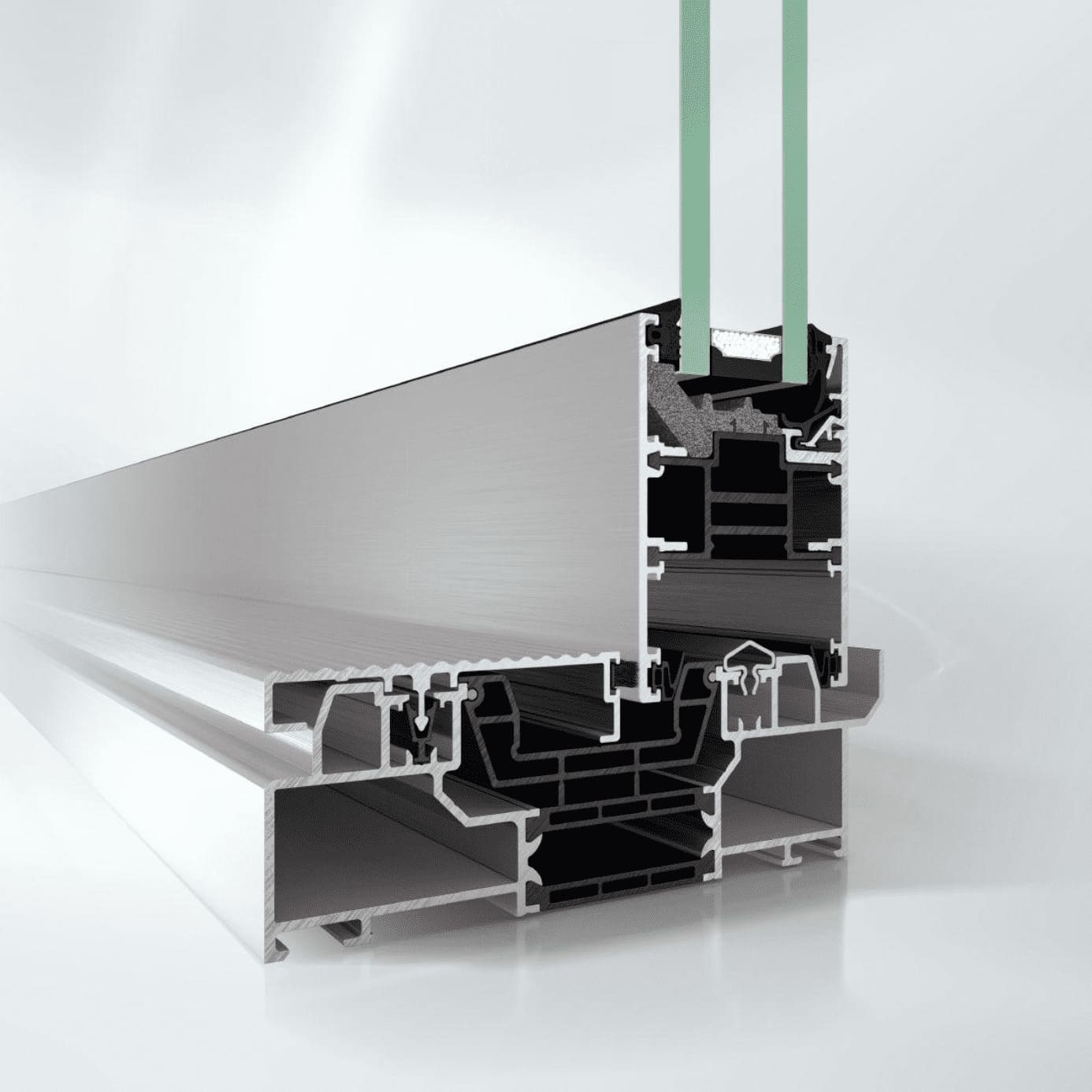

Construction and Capacity

Basic Frame Depth: 2.36 inches (60 mm).
Max Vent Weight: Up to 1100 pounds (500 kg) for lift-and-slide operation [SCHÜCO ASE 60 Sliding Doors - London - Arkay Windows].
Max Dimensions (W x H): Up to 11.48 feet by 11.48 feet (3500 mm x 3500 mm) [SCHÜCO ASE 60 Sliding Doors - London - Arkay Windows].
Glazing Thickness Range: Supports glass from 0.94 inches to 1.57 inches (24 mm to 40 mm).
Track Options: Available in Single, Double, or Triple Track configurations.
Opening Types: Includes various configurations, including an Open Corner option [Schuco ASE 60 Sliding Door Review | DWE].
