The Schüco ASE 67 PD is a multi-award-winning (Red Dot Design Award 2019) sliding door system designed for architectural projects that demand maximum light and transparency.

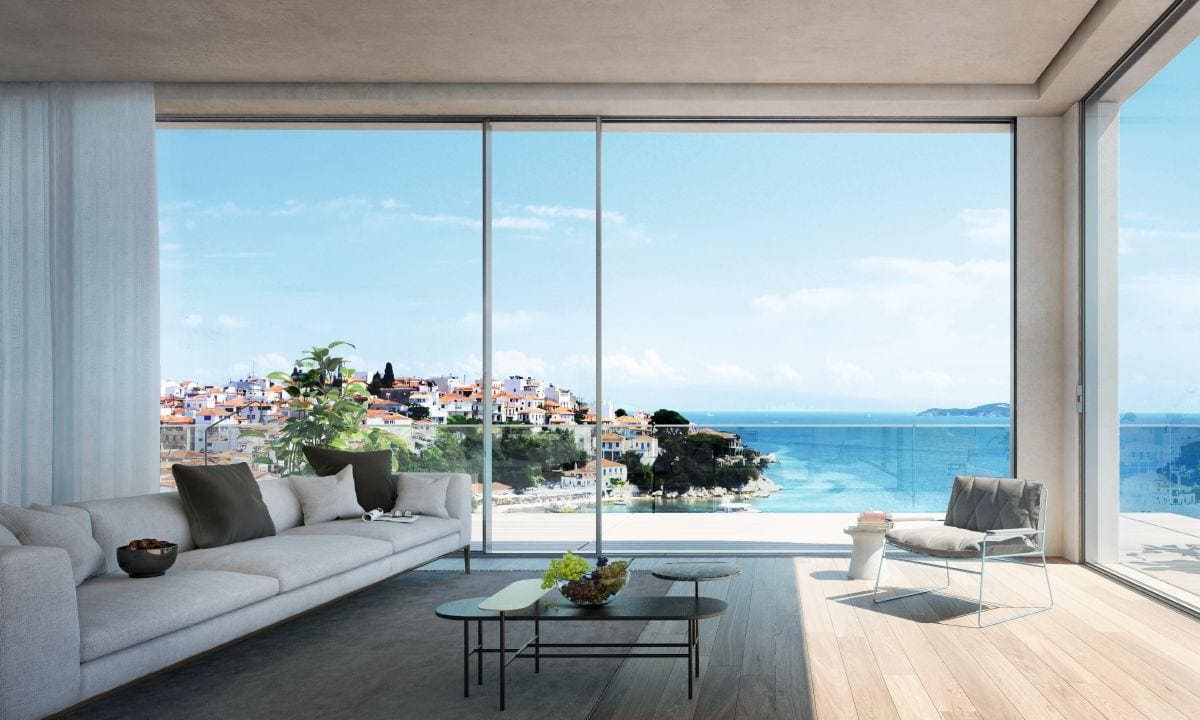

The key feature of this Panorama Design (PD) system is the concealed outer frame, which is designed to disappear into the adjacent wall structure, leaving only minimal, ultra-slim profiles visible.

Concealed Frame: The outer frame can be entirely integrated into the building's masonry, creating an all-glass look with a minimal visible sightline of just 1.22 inches (31 mm) at the center mullion.
Maximum Transparency: The narrow profiles and hidden frame significantly increase the glass area, maximizing natural light penetration.
Accessibility: Available with an optional level threshold that is completely flush with the floor, creating a seamless and barrier-free transition between indoors and outdoors.
Integrated Security: Features a fully integrated locking system concealed within the door leaf and is certified for high RC2 burglar resistance.

Pricing Information (US Estimates)

As a premium, award-winning system with concealed profiles and high-level performance, the Schüco ASE 67 PD is positioned at a higher price point.

Estimated Starting Price: A large reference door size (approx. 13 feet 1 inch by 8 feet 10 inches, triple-glazed) starts from approximately $6,879 USD [Schuco ASE 67 PD Panoramic Sliding Door System | For B2B - debesto].
Factors Affecting Price: Costs vary based on the frame type chosen (the slim 57 mm for renovation or the 90 mm for new construction with maximum profile concealment), the glass specification, and the total size.

Orders over $800 ship free
30 day returns

Material & Dimensions

Thermal and Weather Ratings

Basic Frame Depth: 2.64 inches (67 mm).
Overall Door Insulation (Uw): From 0.17 BTU per hr sq ft F (1.0 W per meter squared Kelvin) [Schüco ASE 67 PD - DALZ Fenster GmbH].
Frame U-Value (Uf): From 0.17 BTU per hr sq ft F (1.0 W per meter squared Kelvin) [ASE 67 PD - Sliding Systems Schüco].
Air Permeability: Class 4 (Highest rating, EN 12207).
Watertightness: Class 7A (EN 12208), or Class 9A depending on configuration [Schüco Sliding System ASE 67 PD - Minimal Frame Projects].
Wind Load Resistance: Up to Class C3 (EN 12210).
Burglar Resistance: Up to RC2 class.

Construction and Capacity

Max Vent Weight: Up to 882 pounds (400 kg).
Max Vent Dimensions (W x H): Up to 10.5 feet wide by 9.8 feet high (3200 mm x 3000 mm).
Visible Interlock Mullion: 1.22 inches (31 mm).
Glazing Thickness Range: Supports glass thickness from 1.42 inches to 1.93 inches (36 mm to 49 mm).

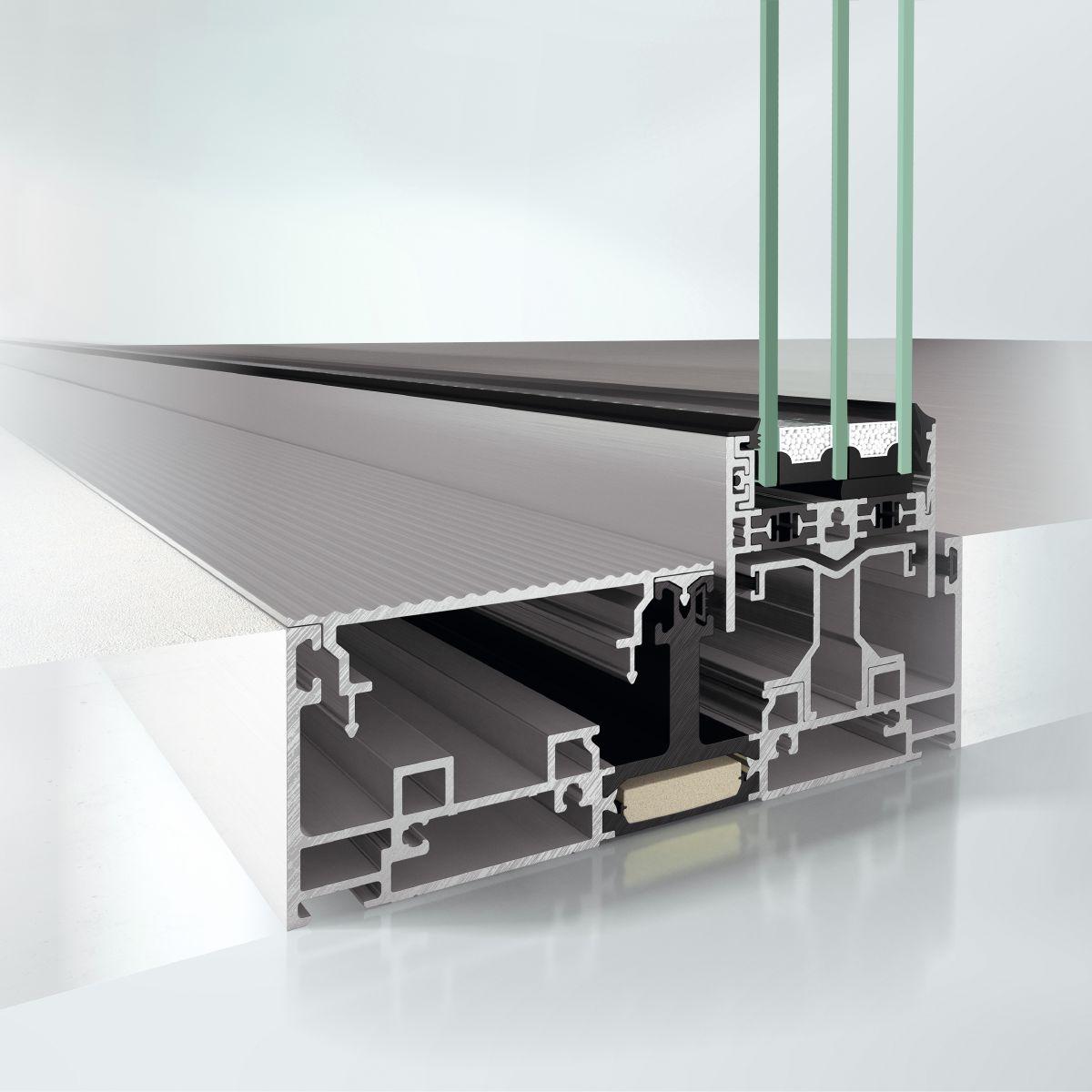

Outer Frame Height Options: Available in a narrow 2.24 inches (57 mm) profile for renovations or a deeper 3.54 inches (90 mm) profile for full concealment in new builds.
Tracks: Available in single, double, or triple track configurations.
