Schüco AWS 90 BS.SI+ Super Insulated Block System | Concealed Vent | Passive House Certified

Name: Schüco AWS 90 BS.SI+ Super Insulated Block System | Concealed Vent | Passive House Certified
Brand: Schuco
Price: 1515.00 USD
Availability: InStock

$1,515.00

2500 in stock

The Schüco AWS 90 BS.SI+ (Block System Super Insulation) is a premium aluminum window system that achieves maximum thermal insulation while delivering sophisticated, contemporary aesthetics.

The "Block System" design conceals the opening sash from the exterior view, creating an elegant, uniform glass facade with incredibly narrow face widths.

Passive House Certified: Meets the stringent thermal insulation requirements for passive houses, confirmed by the Passive House Institute (PHI) Darmstadt.
Maximized Transparency: Features slender face widths, starting from just 77 mm (3.03 inches), which maximizes the glass area and natural light.
Sustainable Construction: The newest "Green" variants of the AWS 90 series utilize significant proportions of renewable raw materials in components like insulating bars and gaskets.
High Security: Compatible with concealed fittings and certified for high levels of burglar resistance.

As a premium, passive-house-certified system, pricing is custom and project-dependent.

Estimated Starting Price (US): Basic single-sash units (AWS 90.SI+ standard variant) start from approximately $280 USD
Project Quote Example: A standard single-wing window (approx. 35 in x 43 in) with DKR hardware may cost around $1515 USD.
Recommendation: Due to the complexity of the Block System design and high-performance requirements, please contact us for a detailed, project-specific quote.

Orders over $800 ship free
30 day returns

Material & Dimensions

Thermal Performance and Ratings

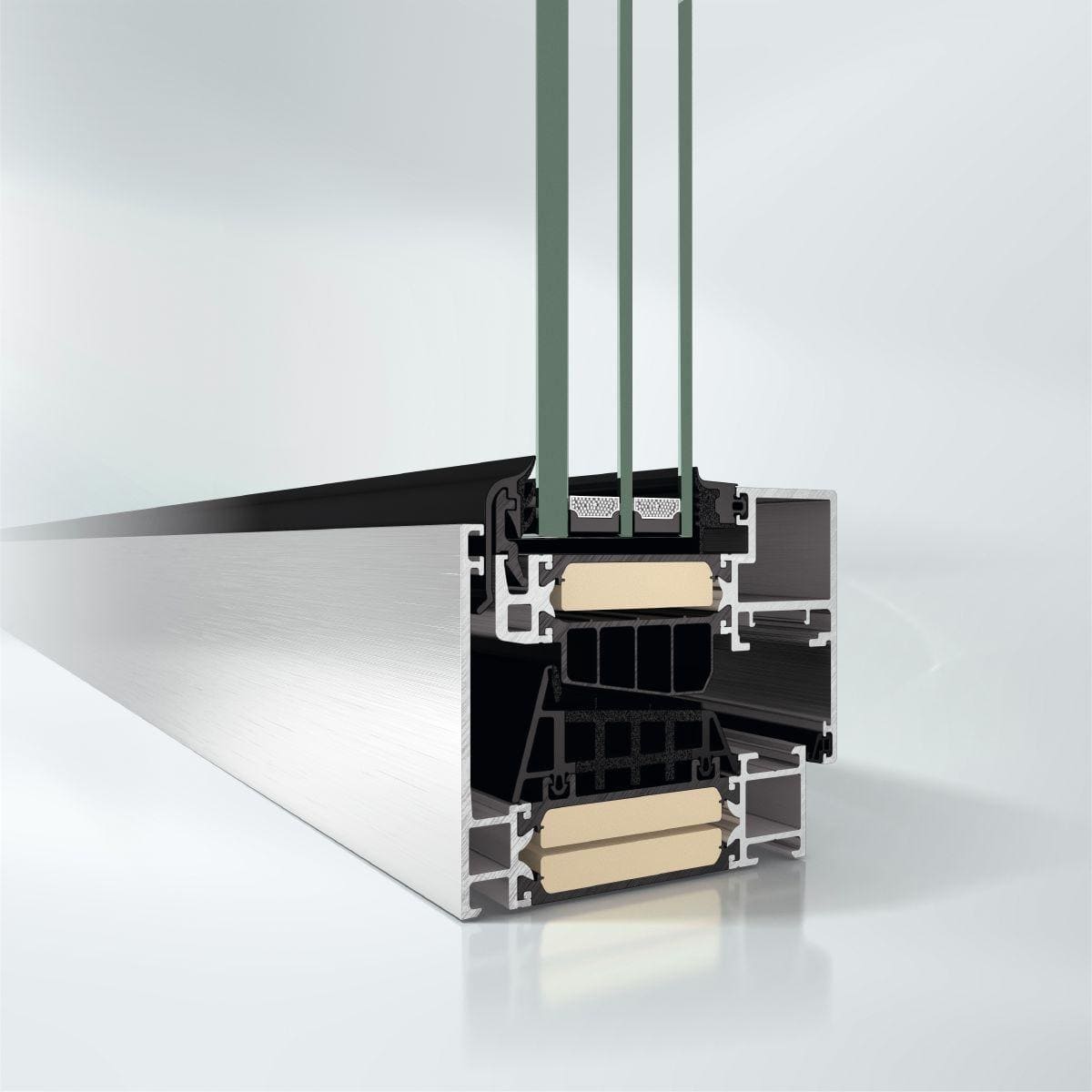

Basic Construction Depth: 90 mm (approx. 3.54 inches).
Frame Thermal Insulation (Uf): From 0.8 W per meter squared Kelvin (approx. 0.14 BTU per hr sq ft F).
Overall Window Insulation (Uw): Can achieve 0.84 W per meter squared Kelvin (approx. 0.15 BTU per hr sq ft F) with triple glazing.
Acoustic Insulation (Rw): Up to 49 dB.
Burglary Resistance: Up to RC3 class (WK3, EN 1627).
Air Permeability: Class 4 (Highest rating, EN 12207).
Watertightness: Class 9A (EN 12208).
Wind Load Resistance: Class C5 / B5 (EN 12210).

Construction and Dimensions

Minimum Visible Face Width: 77 mm (approx. 3.03 inches).
Max Glass Thickness: 58 mm (approx. 2.28 inches).
Maximum Vent Weight: 160 kg (approx. 353 lbs).
Maximum Vent Size (H x W): Up to 2400 mm x 1700 mm (approx. 7.87 ft x 5.58 ft).

Operation and Hardware

Opening Types: Available as turn, turn/tilt, side-hung, and bottom-hung (hopper) units.
Hardware: Utilizes the concealed Schüco AvanTec SimplySmart system fittings.
Automation: Compatible with the Schüco TipTronic SimplySmart generation of electromechanical fittings for automated and monitored operation.
