Schüco AWS 90.SI+ Super Insulation Aluminum Window | 3.54 Inch Depth | Passive House Certified & RC3 Security

Name: Schüco AWS 90.SI+ Super Insulation Aluminum Window | 3.54 Inch Depth | Passive House Certified & RC3 Security
Brand: Schuco
Price: 2500.00 USD
Availability: InStock

$2,500.00

4000 in stock

The Schüco AWS 90.SI+ (Super Insulation Plus) is a premium aluminum window system that achieves maximum thermal insulation and security, perfectly meeting the rigorous standards for Passive House certification (PHI Darmstadt).

With a 90 mm (3.54 inches) construction depth, it represents the ultimate blend of energy efficiency, structural integrity, and architectural freedom.

Passive House Standard: Achieves insulation values suitable for ultra-low energy and Passive House construction.
Maximized Security: Equipped with the Schüco AvanTec SimplySmart resistance system and is certified for high burglar resistance up to RC3 class.

Aesthetic Flexibility: Features a slim face width and can be produced in complex geometries (e.g., round arch, diagonal) and large sizes for impressive window fronts.

Smart Automation: Fully compatible with Schüco TipTronic electromechanical fittings for quiet, concealed, and automated operation.

Pricing Information (US Estimates)

Due to the premium nature and required customization, pricing is complex and project-specific.

Estimated Starting Price (US): Based on a standard operable window (approx. 36 inches by 60 inches), prices typically range from $1500 to $3200 USD when sourced through US-based dealers.

Cost Efficiency: While the initial cost is premium, the unique insulating properties save approximately 730 liters of fuel oil annually for a typical single-family house, providing significant long-term energy savings.

Recommendation: For a firm price, please contact us for a detailed quote based on your specific dimensions and required RC class security level.

Orders over $800 ship free
30 day returns

Material & Dimensions

Thermal Performance and Ratings

Basic Construction Depth: 90 mm (approx. 3.54 inches).
Frame Thermal Insulation (Uf): Starting from 0.71 W per meter squared Kelvin (approx. 0.12 BTU per hr sq ft F).
Overall Window Insulation (Uw): Can achieve 0.8 W per meter squared Kelvin (approx. 0.14 BTU per hr sq ft F) with triple glazing.
Air Permeability: Class 4 (Highest rating, EN 12207).
Watertightness (Driving Rain): Class 9A (EN 12208).
Wind Load Resistance: Class C5 / B5 (EN 12210).
Acoustic Insulation (Rw): Up to 47 dB.
Burglary Resistance: Up to RC3 class (WK3, EN 1627).

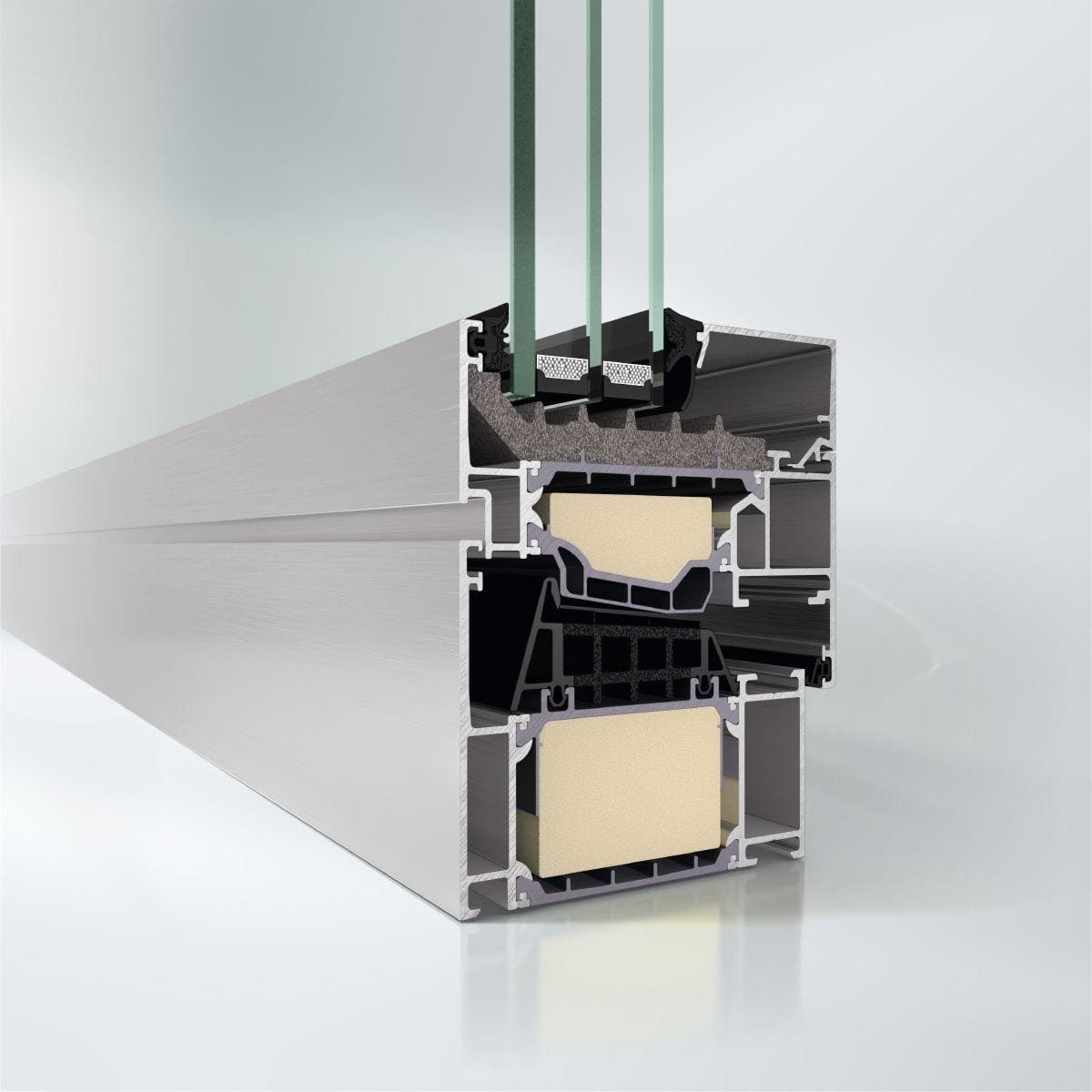

Construction and Dimensions

Minimum Profile Face Width: 95 mm (approx. 3.74 inches), with specialized variants starting from 77 mm (3.03 inches).
Max Glazing Thickness: Up to 58 mm (approx. 2.28 inches).
Max Sash Weight: Up to 160 kg (approx. 353 pounds) with TipTronic fittings, and up to 250 kg (551 pounds) with AvanTec concealed fittings.
Max Sash Size (H x W): Up to 2500 mm x 1700 mm (approx. 8.2 ft x 5.58 ft).

Operation and Design Options

Opening Types: Side-hung, turn/tilt, tilt/slide vents, turn, and hopper.
Hardware: Utilizes the fully concealed Schüco AvanTec SimplySmart fittings system.
Sustainability: Available in the AWS 90.SI+ Green variant, which features components made from renewable raw materials.
Aesthetics: Compatible with the Schüco ADS 90.SI door series for a uniform facade appearance.
