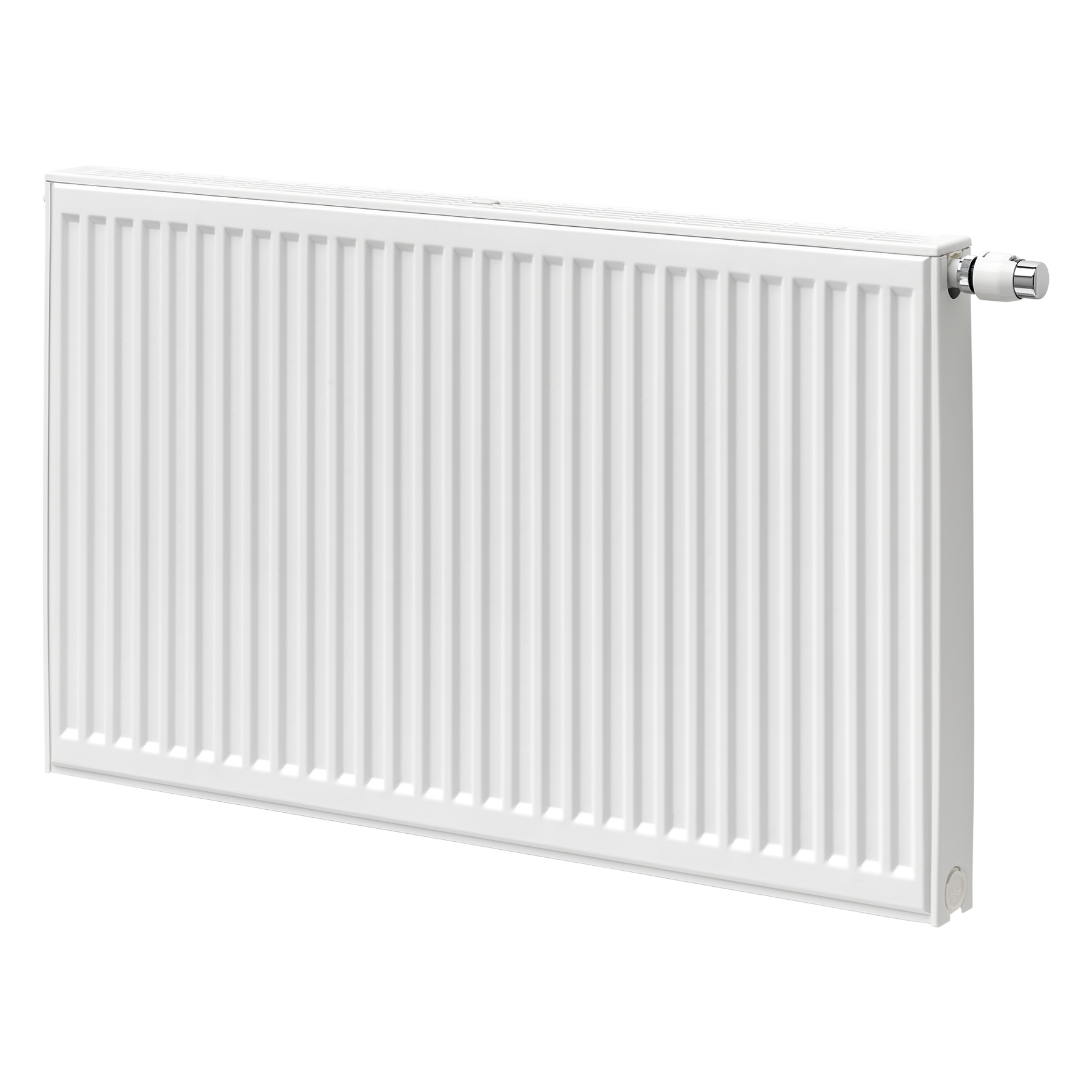

Stelrad Novello ECO Panel Radiators: Future-Ready, High-Efficiency Heating Solutions

Name: Stelrad Novello ECO Panel Radiators: Future-Ready, High-Efficiency Heating Solutions
Brand: Franksthal
Availability: InStock

$0.00

970 in stock

Welcome to our extensive collection of Stelrad Novello ECO Radiators—the leading choice for energy-efficient, high-comfort heating.

Designed and engineered in Europe, this range combines a classic aesthetic with cutting-edge technology, making it perfectly suited for modern, low-temperature heating systems such as heat pumps and condensing boilers.

Key Technology: Novello ECO Series

The unique selling point is the patented Serial Flow Technology. Hot water is directed to the front panel first, maximizing the surface area that directly radiates heat into the room.

Up to 10.5% Energy Savings: Verified by Kiwa, the ECO technology reduces energy consumption by lowering the temperature of the rear panel, minimizing heat loss towards the wall.
Faster Warm-up: Provides up to 23% faster heat-up times compared to standard panel radiators.
Maximum Comfort: Delivers up to 53% higher average surface temperature on the front panel, enhancing the feeling of radiant warmth, even with lower system temperatures.

Comprehensive Customization for Every Room

This collection offers thousands of variations to match any room size and heating requirement:

Multiple Types: Choose from single-panel to triple-panel models (Type 11, 21, 22, and 33) to control depth and heat output.
Vast Dimensions: Available in six different heights (300 mm to 900 mm) and lengths spanning from 400 mm up to 3,000 mm.
Versatile Connections: Features an integrated preset valve insert and flexible connection options, including a convenient center connection, making installation easy and pipes simpler to pre-lay.

Orders over $800 ship free
30 day returns

Material & Dimensions

Product Range and Types

Primary Line: Stelrad Novello ECO Low-Temperature Valve Radiator.
Panel Types (Depth/Output):Type 11 (K1): 1 Panel, 1 Convector Fin (Approx. 61 mm depth).Type 21 (P+): 2 Panels, 1 Convector Fin (Approx. 77 mm depth).Type 22 (K2): 2 Panels, 2 Convector Fins (Approx. 100 mm depth).Type 33 (K3): 3 Panels, 3 Convector Fins (Approx. 158 mm depth).

Dimensions and Sizes

Available Heights: 300 mm, 400 mm, 500 mm, 600 mm, 700 mm, and 900 mm.
Available Lengths: Ranging from 400 mm up to 3,000 mm.
Total Variants: Over 3,487 unique size and type combinations.

Performance and Materials

Max. Operating Pressure: 10 bar (Tested to 13 bar).
Max. Operating Temperature: 110 °C.
Conformity: Manufactured and tested in accordance with EN 442 standards [Source 2.3].
Material: High-quality steel with corrosion-resistant finish.
Heat Output Standard: Output is guaranteed and measured according to EN 442 at both standard ($\Delta$t50) and low-temperature conditions (e.g., $55/45/20^{\circ}C$ and $70/50/20^{\circ}C$).

Connection and Installation

Valve Insert: Integrated, factory-preset, and adjustable Heimeier valve insert (M30 x 1.5 mm thread).
Connections: Includes two $3/4”$ male Eurocone center connections and two $1/2”$ female lateral bottom connections.
Flexibility: Valve insert can be fitted on the left or right side (Type 11 left version available on request)
Finish: Top grille and side panels included.
Mounting: Supplied with VDI brackets (Monclac type with anti-lift), screws, and plugs.

Finishes and Warranty

Standard Color: Stelrad White
Custom Colors: Available in 35 different Stelrad colors and approximately 200 RAL colors upon request (longer lead time applies)
Warranty: 10-Year Manufacturer's Guarantee
